Author: Subject: 4AGE 93 Tercel Turbo Build
MannyTercel
TO Newbie
*


Avatar


Posts: 21
Registered: 16-1-2016
Location: Mississauga, ON
Member Is Offline


[*] posted on 15-2-2016 at 08:13 PM
4AGE 93 Tercel Turbo Build


Hey everyone!

Here's the story...

So i bought a 1993 Toyota Tercel off a fellow TercelOnline user (Astrovannin). I was always interested in attempting this swap after reading 4agetercel's walkthrough but luckily for me, I found one already completed so i jumped on it fast!

So here we are with a 4AGE swapped Tercel. What to do with it now? How about a turbo :naughty:

This build is going to take a while as i am still gathering parts and I do work full time so these updates will be slow!

With all this snow lately, i haven't had a chance to take any pics of the tercel yet. But i will upload some hopefully on this week!

Hope everyone enjoys this build :)




1993 Toyota Tercel
4AGE Swapped
View user's profile View All Posts By User
estabon23
TO Crew
******


Avatar


Posts: 2656
Registered: 11-7-2002
Location: Madison, WI
Member Is Offline

Mood: mum is the word

[*] posted on 16-2-2016 at 12:42 PM


welcome to the board...!

i also bought a '93 tercel, 4AGE swapped, from a member of this forum...
mine is a 20v silvertop, and the swap was all done by BYP/GTRevva over a decade ago... it has passed through many owners, most with good intentions to "finish" this project, add a turbo, etc...
my intention is to "finish" this project with better clutch/flywheel, real lsd, open t/b's & better ignition/tuning...

is this the 4age tercel you bought...? bigport bluetop...?
http://board.tercelonline.com/viewthread.php?tid=38852
View user's profile View All Posts By User
josephflynn007
TO Crew
******


Avatar


Posts: 2846
Registered: 23-7-2006
Location: Kentucky
Member Is Offline

Mood: Most Loved & Hated

[*] posted on 16-2-2016 at 11:15 PM


Look into swapping all Honda electronics on it and adapting the distributor.

Cheapest and easiest DIY standalone there is.

[Edited on 3/27/2016 by josephflynn007]




1995 Tercel - 5efe/C140 bone stock. GT2560R & Haltech Elite 1000 coming soon
1996 Tercel - 5efe/CT9 = Project Parts Car
1997 Tercel - 4efte automatic = stillborn
1993 Tercel - 4efte 151 whp @ 10 psi, 14.18 @ 95 mph --- Now 1zz & C140 Hybrid
1995 Tercel - 4efte powered, 132 whp @ 8psi, 13.90 @ 98.26 mph ---RIP "Most Loved & Hated"

09 335i | 79 Malibu | 92 D21
93 Seirra | 92 Protege DX to GTX
View user's profile View All Posts By User
josephflynn007
TO Crew
******


Avatar


Posts: 2846
Registered: 23-7-2006
Location: Kentucky
Member Is Offline

Mood: Most Loved & Hated

[*] posted on 16-2-2016 at 11:15 PM


Doublepost

[Edited on 3/27/2016 by josephflynn007]




1995 Tercel - 5efe/C140 bone stock. GT2560R & Haltech Elite 1000 coming soon
1996 Tercel - 5efe/CT9 = Project Parts Car
1997 Tercel - 4efte automatic = stillborn
1993 Tercel - 4efte 151 whp @ 10 psi, 14.18 @ 95 mph --- Now 1zz & C140 Hybrid
1995 Tercel - 4efte powered, 132 whp @ 8psi, 13.90 @ 98.26 mph ---RIP "Most Loved & Hated"

09 335i | 79 Malibu | 92 D21
93 Seirra | 92 Protege DX to GTX
View user's profile View All Posts By User
trimmata
TO Newbie
*


Avatar


Posts: 20
Registered: 29-12-2014
Location: Jedes municipality
Member Is Offline


[*] posted on 17-2-2016 at 04:50 PM


Quote: Originally posted by josephflynn007
Looks into swapping all Honda electronics on it and adapting the distributor.

Cheapest and easiest DIY standalone there is.


Where can i learn about this?
PGMFI or wherelse?




View user's profile Visit user's homepage View All Posts By User
josephflynn007
TO Crew
******


Avatar


Posts: 2846
Registered: 23-7-2006
Location: Kentucky
Member Is Offline

Mood: Most Loved & Hated

[*] posted on 18-2-2016 at 01:56 PM


Quote: Originally posted by trimmata
Quote: Originally posted by josephflynn007
Looks into swapping all Honda electronics on it and adapting the distributor.

Cheapest and easiest DIY standalone there is.


Where can i learn about this?
PGMFI or wherelse?


http://www.toymods.org.au/forums/threads/57954-DIY-inexpensive-engi...

Lots of pictures you can google showing the different ways people adapted the Honda distributor to the engine.




1995 Tercel - 5efe/C140 bone stock. GT2560R & Haltech Elite 1000 coming soon
1996 Tercel - 5efe/CT9 = Project Parts Car
1997 Tercel - 4efte automatic = stillborn
1993 Tercel - 4efte 151 whp @ 10 psi, 14.18 @ 95 mph --- Now 1zz & C140 Hybrid
1995 Tercel - 4efte powered, 132 whp @ 8psi, 13.90 @ 98.26 mph ---RIP "Most Loved & Hated"

09 335i | 79 Malibu | 92 D21
93 Seirra | 92 Protege DX to GTX
View user's profile View All Posts By User
trimmata
TO Newbie
*


Avatar


Posts: 20
Registered: 29-12-2014
Location: Jedes municipality
Member Is Offline


[*] posted on 19-2-2016 at 01:01 PM


Thank U



View user's profile Visit user's homepage View All Posts By User
josephflynn007
TO Crew
******


Avatar


Posts: 2846
Registered: 23-7-2006
Location: Kentucky
Member Is Offline

Mood: Most Loved & Hated

[*] posted on 19-2-2016 at 01:47 PM


Quote: Originally posted by trimmata
Thank U


No problem.




1995 Tercel - 5efe/C140 bone stock. GT2560R & Haltech Elite 1000 coming soon
1996 Tercel - 5efe/CT9 = Project Parts Car
1997 Tercel - 4efte automatic = stillborn
1993 Tercel - 4efte 151 whp @ 10 psi, 14.18 @ 95 mph --- Now 1zz & C140 Hybrid
1995 Tercel - 4efte powered, 132 whp @ 8psi, 13.90 @ 98.26 mph ---RIP "Most Loved & Hated"

09 335i | 79 Malibu | 92 D21
93 Seirra | 92 Protege DX to GTX
View user's profile View All Posts By User
MannyTercel
TO Newbie
*


Avatar


Posts: 21
Registered: 16-1-2016
Location: Mississauga, ON
Member Is Offline


[*] posted on 20-2-2016 at 02:53 PM


Hey estabon23, would love to see pics of your tercel! That is the guide I've been reading over many months but that is not the Tercel I bought.



1993 Toyota Tercel
4AGE Swapped
View user's profile View All Posts By User
MannyTercel
TO Newbie
*


Avatar


Posts: 21
Registered: 16-1-2016
Location: Mississauga, ON
Member Is Offline


[*] posted on 20-2-2016 at 03:06 PM


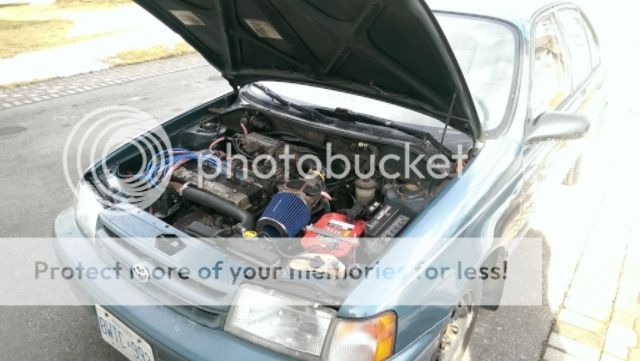

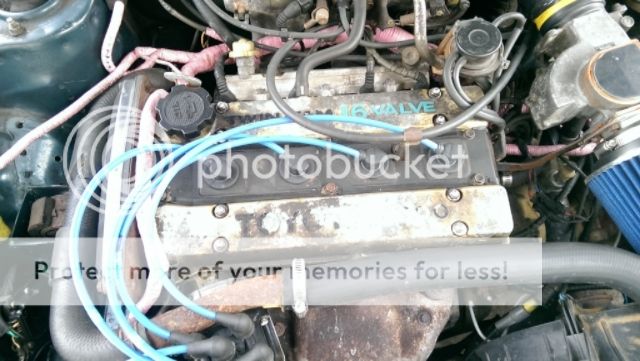

Here are some pics! Shes a bit dirty from all the salt on the roads!

Work that I did so far:

Rebuilt leaky distributor with KBOX kit
New cap and rotor
New spark plugs and wires (NGK)
New thermostat and coolant flush
New alternator out of an ST205 Celica (100 amps)

Parts collected so far for the turbo build

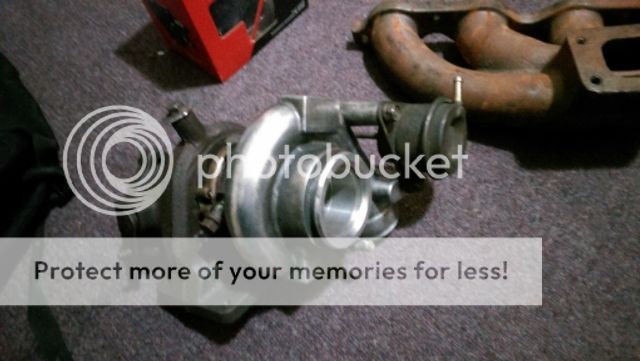

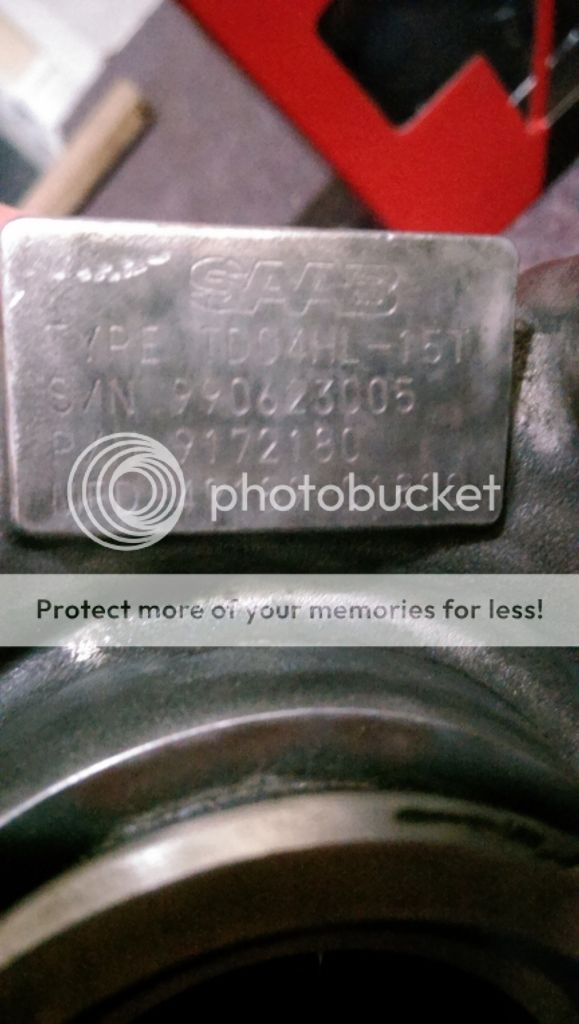

TD04 turbo off a Saab, Minimal to no shaft play ($120)

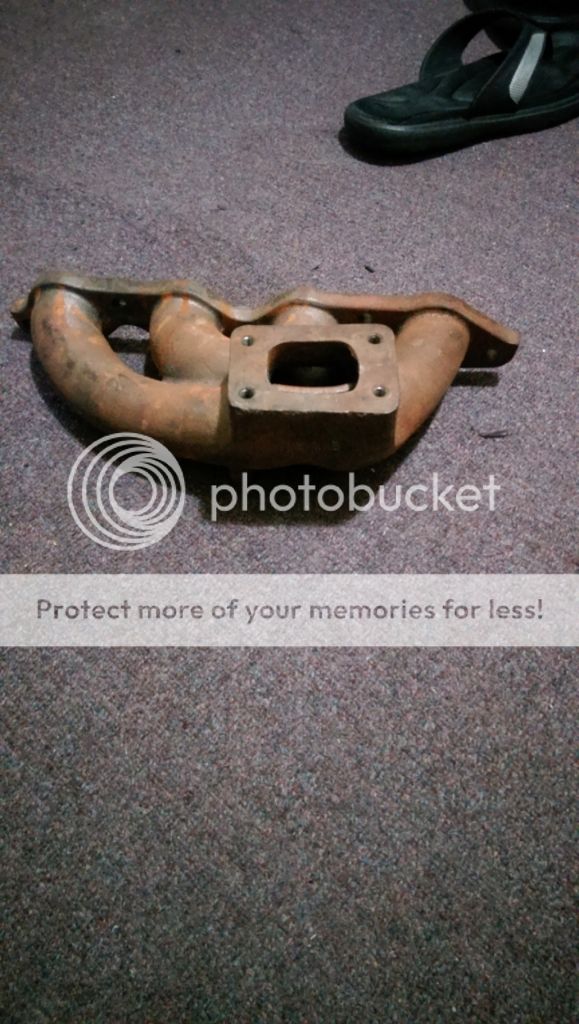

Cast iron Manifold (EIII USA) (Free)
Synapse Synchronic Diverter Valve ($80)
AEM FIC ($100 shipped to my place)

So for the price for this build is at $300. Trying to keep this build under $1000

I also plan on doing the Corolla big brake upgrade with steel braided lines and MX3 rotors.

After hearing from tercel3ee, i also plan on doing KYB GR2's and B&G springs all around!

As stated before, this build is going to take some time :)

Hope y'all enjoy these pics! :pics2:


















1993 Toyota Tercel
4AGE Swapped
View user's profile View All Posts By User
MannyTercel
TO Newbie
*


Avatar


Posts: 21
Registered: 16-1-2016
Location: Mississauga, ON
Member Is Offline


[*] posted on 26-3-2016 at 09:01 PM


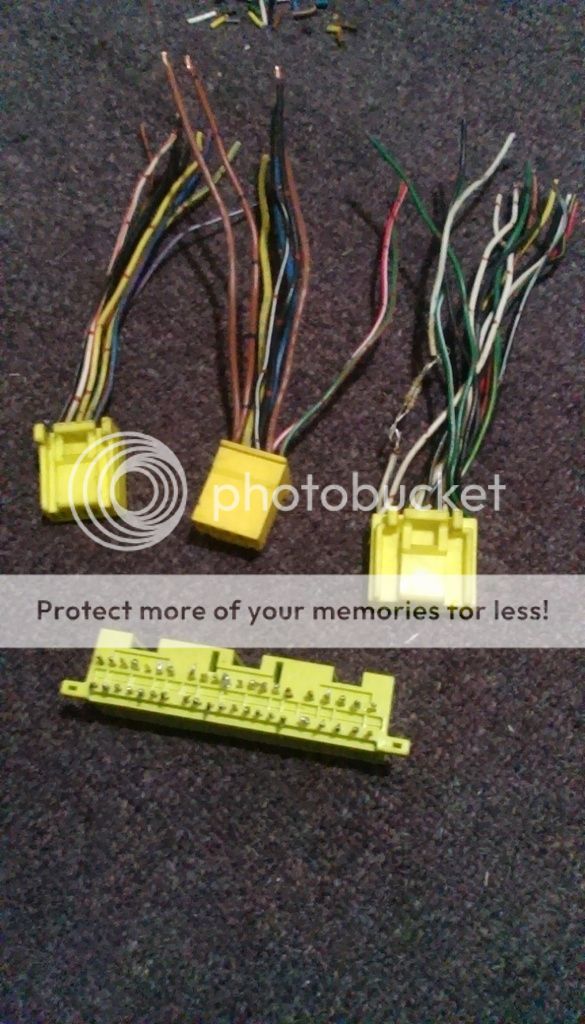

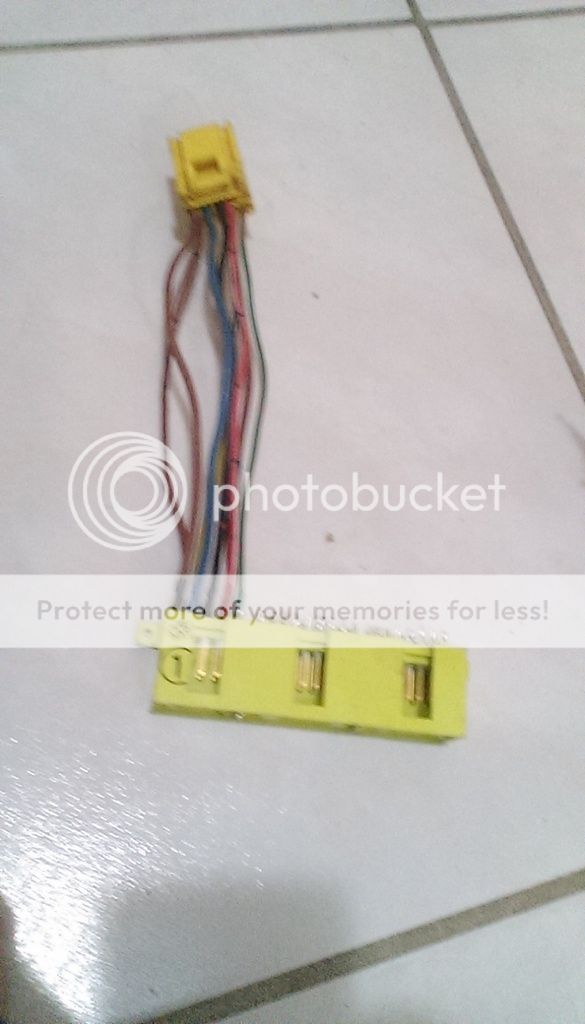

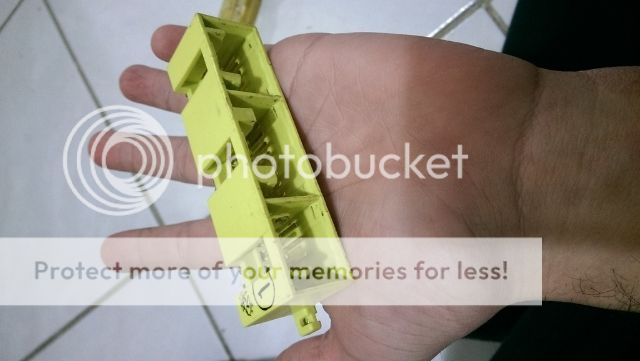

Got my FIC, started making a ghetto boomslang harness :thumbup: Will post pinouts possibly tomorrow if everything checks out. Put a lot of research into this! hopefully it works :pepper:













1993 Toyota Tercel
4AGE Swapped
View user's profile View All Posts By User
josephflynn007
TO Crew
******


Avatar


Posts: 2846
Registered: 23-7-2006
Location: Kentucky
Member Is Offline

Mood: Most Loved & Hated

[*] posted on 27-3-2016 at 12:32 AM


Damn what a deal on the FIC!



1995 Tercel - 5efe/C140 bone stock. GT2560R & Haltech Elite 1000 coming soon
1996 Tercel - 5efe/CT9 = Project Parts Car
1997 Tercel - 4efte automatic = stillborn
1993 Tercel - 4efte 151 whp @ 10 psi, 14.18 @ 95 mph --- Now 1zz & C140 Hybrid
1995 Tercel - 4efte powered, 132 whp @ 8psi, 13.90 @ 98.26 mph ---RIP "Most Loved & Hated"

09 335i | 79 Malibu | 92 D21
93 Seirra | 92 Protege DX to GTX
View user's profile View All Posts By User
4agetercel
TO Patron
******


Avatar


Posts: 2041
Registered: 9-4-2007
Location: London, ON Canada
Member Is Offline

Mood: eight-six burnouts

[*] posted on 28-3-2016 at 09:07 PM


There she is. At least she's still kicking




4AGE engine swappinz http://board.tercelonline.com/viewthread.php?tid=38852 RIP 4agTercel, 09/02/2011
View user's profile Visit user's homepage View All Posts By User This user has MSN Messenger
MannyTercel
TO Newbie
*


Avatar


Posts: 21
Registered: 16-1-2016
Location: Mississauga, ON
Member Is Offline


[*] posted on 29-3-2016 at 09:29 PM


Yep got a killer deal! Unfortunately, when I went to start the car with the FIC hooked up, it starts for 1-3 seconds and dies right away. Contacted AEM support and it looks like I need to wire in some pull down resistors to fix the noisy crank/cam signals.

Here are the pins I used. Maybe someone can take a look and see if they see anything wrong.

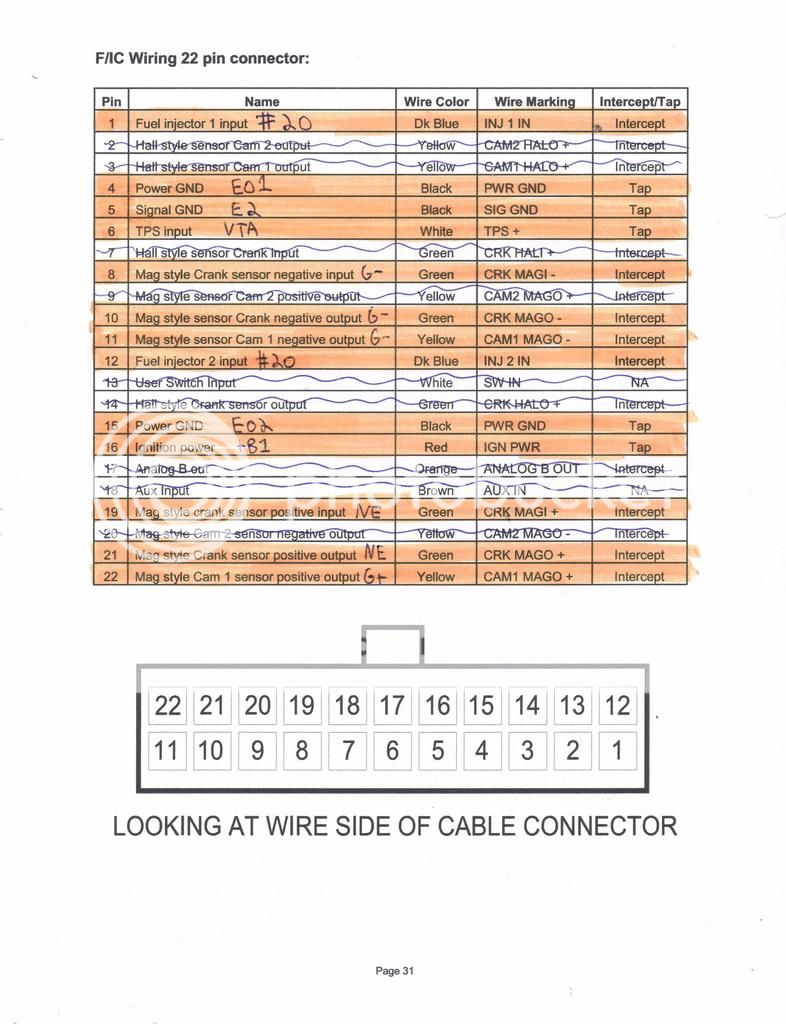

22 pin connector (FIC)



24 pin connector (FIC)




ECU pin outs (AE82)

V Connector
Pin No. Symbol Color Terminal
1 NSW B-W (88�f FX16 A/T), Neutral Start Switch
2 VF R-W Check connector
3 STA B Starter switch
4 # 10 L No. 3, 4 injector
5 E01 BR Engine ground (Power)
6 S/TH G-R Vacuum switching valve (VSV)
7 E1 BR Engine ground
8 IGT B Igniter
9 # 20 Y No. 1, 2 injector
10 E02 BR Engine ground (Power)

U Connector
Pin No. Symbol Color Terminal
1 NE W Engine revolution sensor
2 THG P-G (88�f FX16), EGR Temp Sensor [For California]
3 G+ B Engine revolution sensor
4 G- W Engine revolution sensor
5 IGF B-Y Igniter
6 IDL L Throttle sensor
7 T L-W Check connector
8 WAN G-W Warning light
9 FPU G-Y (88�f FX16), VSV (FPU)
10 THW W Water temp. sensor
11 VTA R Throttle sensor
12 VCC Y Throttle sensor
13 OX B Oxygen sensor
14 E2
(E21) BR Sensor Earth [E2: 88�f FX16]
15 A/C B-W A/C Magnet clutch
16
17 HT P-B Oxygen Sensor Heater (88�f Fx16),
18 I/UP
(VISC) B Vacuum switching valve [Idle up]

T Connector
Pin No. Symbol Color Terminal
1 +B1 B-R Main relay
2 BATT R-L Battery
3 THA Y Inlet air temp. sensor
4 VS Y-L Air flow meter
5 VC L-R Air flow meter
6 L1 Y-L (88�f FX16 A/T), ECT Computer
7 L3 Y-R (88�f FX16 A/T), ECT Computer
8 +B B-R Main relay
9 - - -
10 SPD V-W Speedometer
11 STP G-W (88�f FX16), Stop Light Switch
12 E21 B-R Sensor earth
13 L2 Y-G (88�f FX16 A/T), ECT Computer
14 ECT P (88�f FX16 A/T), ECT Computer




1993 Toyota Tercel
4AGE Swapped
View user's profile View All Posts By User
josephflynn007
TO Crew
******


Avatar


Posts: 2846
Registered: 23-7-2006
Location: Kentucky
Member Is Offline

Mood: Most Loved & Hated

[*] posted on 29-3-2016 at 10:11 PM


Good luck with it! Seems like you're on the right track!

:deal:




1995 Tercel - 5efe/C140 bone stock. GT2560R & Haltech Elite 1000 coming soon
1996 Tercel - 5efe/CT9 = Project Parts Car
1997 Tercel - 4efte automatic = stillborn
1993 Tercel - 4efte 151 whp @ 10 psi, 14.18 @ 95 mph --- Now 1zz & C140 Hybrid
1995 Tercel - 4efte powered, 132 whp @ 8psi, 13.90 @ 98.26 mph ---RIP "Most Loved & Hated"

09 335i | 79 Malibu | 92 D21
93 Seirra | 92 Protege DX to GTX
View user's profile View All Posts By User
