Author: Subject: Throttler's 92 Paseo WIP
Throttler
über TO Member
*****




Posts: 1143
Registered: 26-5-2007
Location: Cincinnati OH
Member Is Offline

Mood: Deluged with semi finished sh it

[*] posted on 27-3-2012 at 09:20 AM
Throttler's 92 Paseo WIP


So I thought I would start a WIP thread.

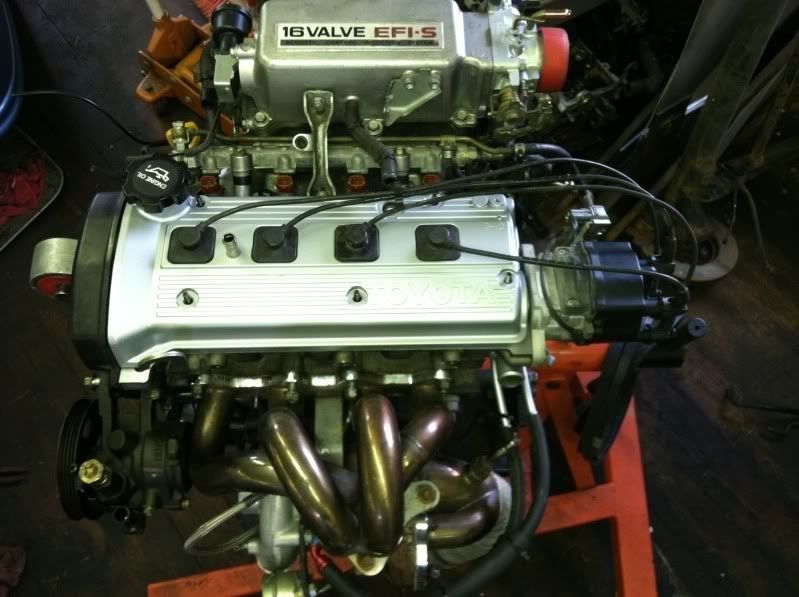

Getting ready to install the 5efhe.

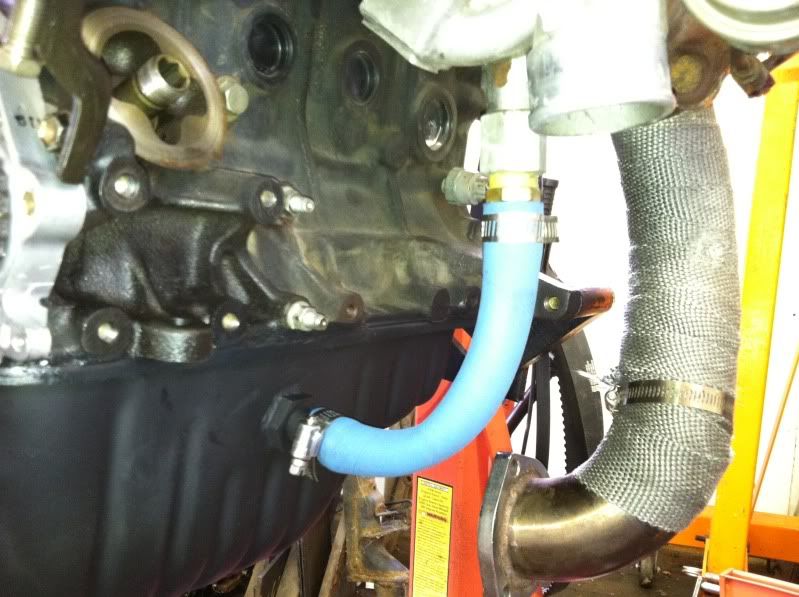

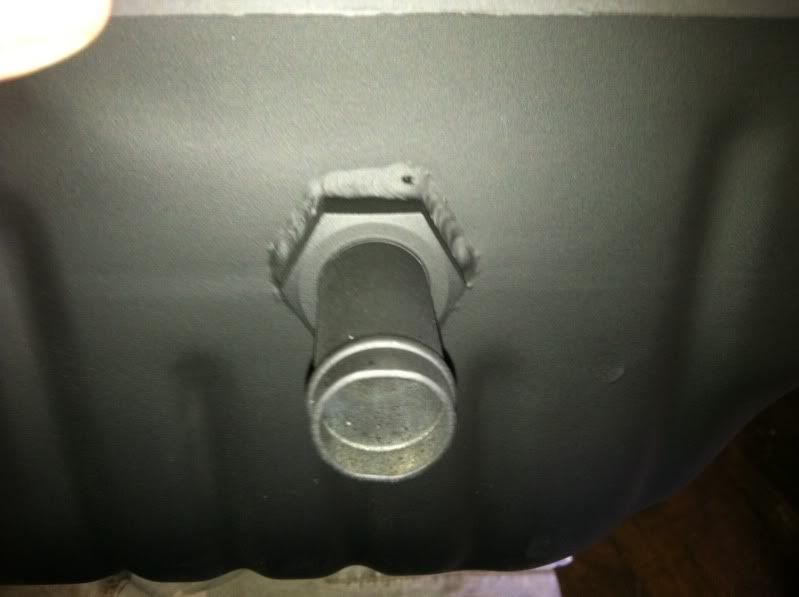

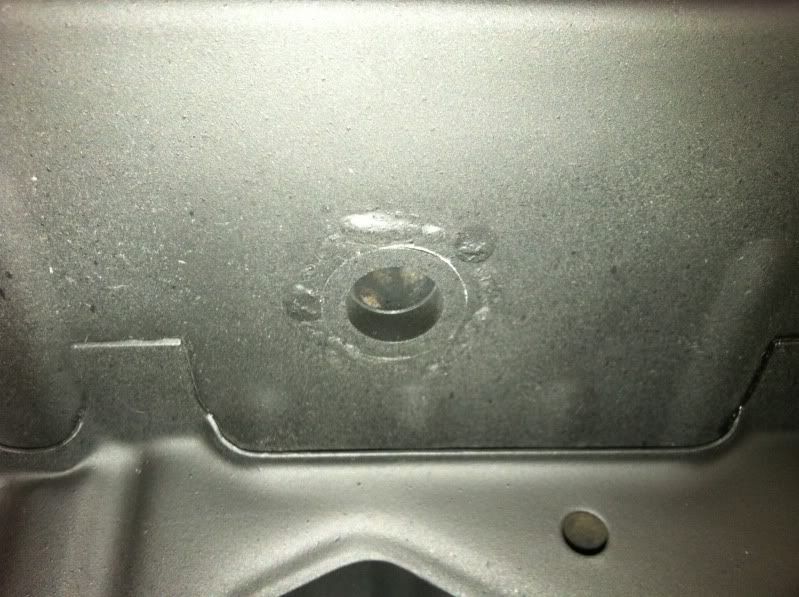

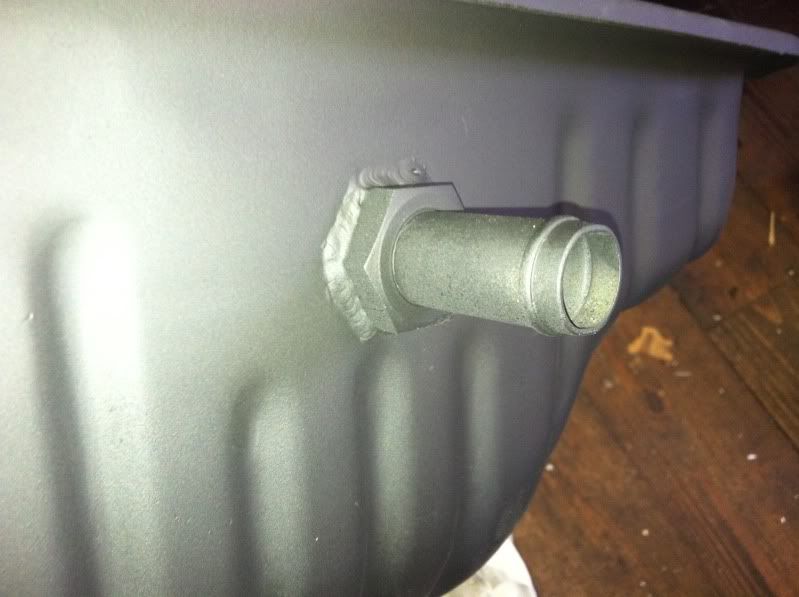

Here is the oil drain fitting I added to a 3ee/1st gen 5efe oil pan I got from the junkyard.

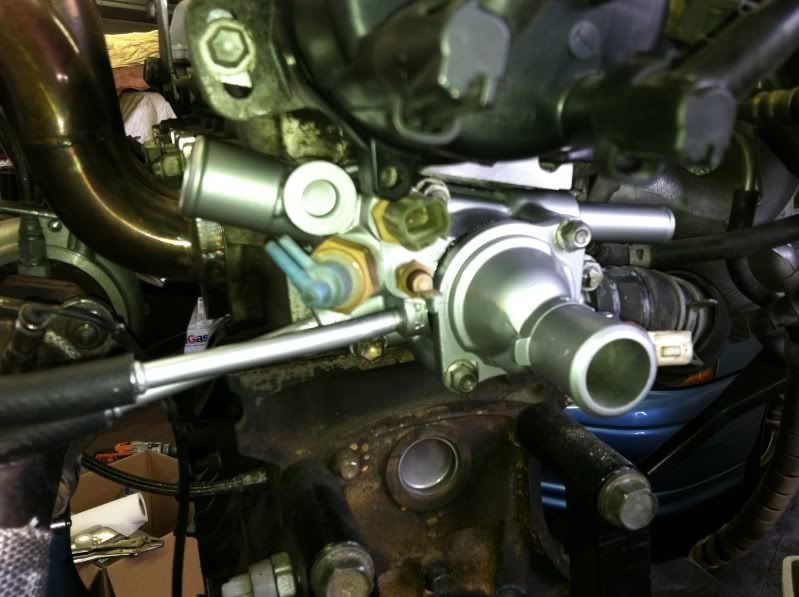

4efte style t-stat housing with turbo coolant lines


Here is what is going together now:

Engine/trans
5efhe 9.8:1 CR ASI
Megasquirt II v3.0 http://board.tercelonline.com/viewthread.php?tid=47510
Innovate LC-1 WB02 http://board.tercelonline.com/viewthread.php?tid=45372#pid540679
TD04L / Speedvision manifold (wheelers old setup)
HKS Adjustable CT9 actuator
4efte valve cover
Catch can from Goat
DIY 4efte style thermostat housing http://board.tercelonline.com/viewthread.php?tid=47983#pid545260
Aasco 3ete flywheel 107458-11 http://board.tercelonline.com/viewthread.php?tid=38869&page=7#p...
ACT TC2-XTG6 212mm 6 puck sprung hub clutch http://board.tercelonline.com/viewthread.php?tid=47675#pid541983
MSD 756cc injectors (from wheeler)
C52 3.72:1 final http://board.tercelonline.com/viewthread.php?tid=42739
55mm throttle body http://board.tercelonline.com/viewthread.php?tid=38214
TOGA "High Volume" oil pump http://board.tercelonline.com/viewthread.php?tid=44626
Summit Racing Transdapt oil filter relocator P/N TRD-1113
Denso Iridium IQ20 spark plugs
92 MR2 100A alternator (from pre-12/91 electric PS car)
Speedvision adjustable cam gear
Aeromotive -13105 compact FPR
Turbosmart TS-0402-1002 FPR adapter
Brass shifter bushings (Summit Engineering for MR2/Corolla/Celica)
HKS SSQV IV BOV
NST water pump pulley
manual swap http://board.tercelonline.com/viewthread.php?tid=37663
Honda ebay dual core 1/2 width radiator & 12" fan
2" aluminum FMIC tubing - (8) 3" CLR 90's, (2) 2" CLR 90's, (1) 45*, 3' straight, (2) 2" couplers, (2) 2" x 2.5" reducers, (1) 2" x 2.25" reducer, T-bolt clamps as necessary - most from Mandrel Bend Solutions
Turbo inlet tubing - (1) 2.25" CLR 90, (1) 2.25" coupler
Ebay FMIC 27" x 12" x 3", 2.5" inlet/outlet

Malibuguy / MBS 3" stainless exhaust
ACDelco 1.0kW starter


Engine/trans stuff I still need to get
turbo oil supply fittings
lightweight crank pulley
lightweight alternator pulley that will work with my larger alternator
lightweight PS pump pulley
LSD (maybe for later)

Chassis
Celica Alltrac 277mm front brakes (on since '10) http://board.tercelonline.com/viewthread.php?tid=36927
Starlet rear disk conversion
Braided stainless front brake lines
Sleepyrz LCA bushings
New LCA's from RockAuto
Enkei PF01 17" rims (on since '11) http://board.tercelonline.com/viewthread.php?tid=46423
HIDplanet mini D2S HID retrofit http://board.tercelonline.com/viewthread.php?tid=47230
98 Camry master cylinder w/ 1" bore
Ground Control coilover kit / KYB GR2's 300lb/in front 200lb/in rear
LED cluster http://board.tercelonline.com/viewthread.php?tid=44736&page=2
LED tails http://board.tercelonline.com/viewthread.php?tid=36292 (on for a long time)
Front bumper grill removal http://board.tercelonline.com/viewthread.php?tid=37514

Things that I have previously worked on but not going together in this build right now, or have been superceded by better mods:

DIY adjustable cam gear http://board.tercelonline.com/viewthread.php?tid=38215
Hybrid MR2 rear disk swap http://board.tercelonline.com/viewthread.php?tid=36444
Corolla front disk swap
http://board.tercelonline.com/viewthread.php?tid=33677

[Edited on 12-7-2012 by Throttler]

[Edited on 14-9-2012 by Throttler]




92 Paseo WIP

Quote:
posted on another forum
...but point being, its a tercel. not meant to be fast, or to be an integra.


:haha:
View user's profile View All Posts By User
St_Mu69
T.O. Patron
****


Avatar


Posts: 805
Registered: 20-9-2011
Location: St-Alphonse-Rodriguez,QC,CANADA J0K 1W0
Member Is Offline

Mood: Fast and Furious

[*] posted on 27-3-2012 at 09:28 AM


Nice job. Keep us posted :)




--- Full Part catalog---
View user's profile View All Posts By User
Goat
AKA...silent_night88
******


Avatar


Posts: 2029
Registered: 15-2-2010
Location: Lost in the flow of this everyday life
Member Is Offline

Mood: chirkin it up

[*] posted on 27-3-2012 at 09:31 AM


throttles back it!! watch out!! keep it up and keep us udated!



AKA --> Silent_Night88

http://board.tercelonline.com/viewthread.php?tid=42786&page=1#pid47...

"People should not be afraid of their governments; Governments should be afraid of their people"

~EP91 4EFTE~Revva Harness~Tubular Intake Manifold~Custom Ram Intake~FMIC~HKS Style BOV~NRG AFPR~AC/PS ~Delete~NST Pullies~ClutchNet 6 Puck Solid Hub Clutch Disk~ClutchNet Stage 3 Pressure Plate~NGK Plugs and Wires~Speedvision Exhaust Manifold~HKS Adjustable Wastegate Actuator~Emange Blue~Paseo Brake Upgrade~SS Brake ~Lines~SS Clutch Line~Anti Lift Plates~Gutted Cat~Brass Shifter Bushings~Paseo Front Sway Bar~Speedvision Light Weight Cam Gear~

View user's profile View All Posts By User
josephflynn007
TO Crew
******


Avatar


Posts: 2846
Registered: 23-7-2006
Location: Kentucky
Member Is Offline

Mood: Most Loved & Hated

[*] posted on 27-3-2012 at 03:52 PM


Nice!



1995 Tercel - 5efe/C140 bone stock. GT2560R & Haltech Elite 1000 coming soon
1996 Tercel - 5efe/CT9 = Project Parts Car
1997 Tercel - 4efte automatic = stillborn
1993 Tercel - 4efte 151 whp @ 10 psi, 14.18 @ 95 mph --- Now 1zz & C140 Hybrid
1995 Tercel - 4efte powered, 132 whp @ 8psi, 13.90 @ 98.26 mph ---RIP "Most Loved & Hated"

09 335i | 79 Malibu | 92 D21
93 Seirra | 92 Protege DX to GTX
View user's profile View All Posts By User
madRPM
TO Patron
******


Avatar


Posts: 1406
Registered: 12-2-2006
Location: Tampa, Fl
Member Is Offline

Mood: No Mood

[*] posted on 27-3-2012 at 04:51 PM



Clean:thumbup:

Does the Camry master cylinder bolt-in or are there mods necessary?




View user's profile View All Posts By User
Malibuguy
TO Crew
******


Avatar


Posts: 3241
Registered: 16-8-2006
Location: Westminster, MD
Member Is Offline

Mood: Im back...watch the fuck out

[*] posted on 27-3-2012 at 08:34 PM


Like



-Gregory...the exhaust freak & part of the TO.COM (_o_) crew ;)

-97 Whitehawk almost 300k DIS 14lbs 134/174 14.3@95 2.0 60ft. Track day beast. RIP...one day Ill be back

-97 coral rose pearl coupe. Stock with the side of stock
View user's profile Visit user's homepage View All Posts By User
Throttler
über TO Member
*****




Posts: 1143
Registered: 26-5-2007
Location: Cincinnati OH
Member Is Offline

Mood: Deluged with semi finished sh it

[*] posted on 27-3-2012 at 09:58 PM


Quote: Originally posted by madRPM

Clean:thumbup:

Does the Camry master cylinder bolt-in or are there mods necessary?

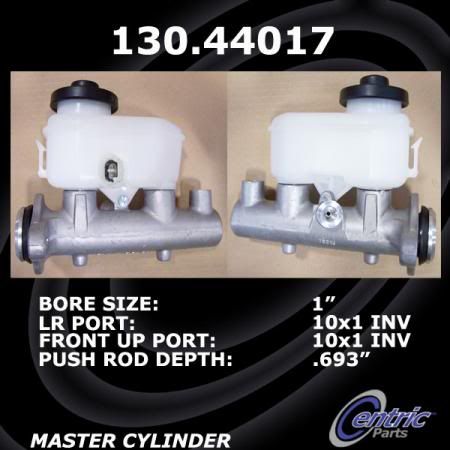

My understanding that there are no mods necessary but I will find out for sure and let everyone know. This is sc468nm's mod.

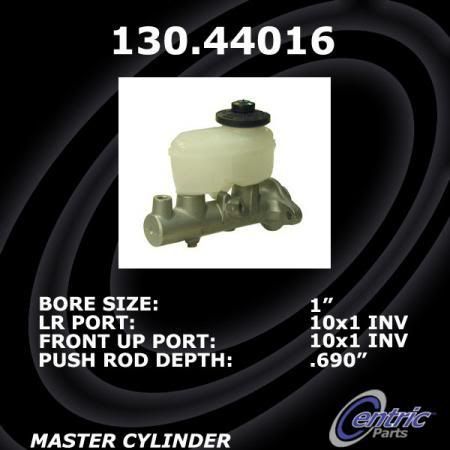

Looking at rockauto's pictures, it looks like the ports are in approximately the right place and orientation. They are the same size.

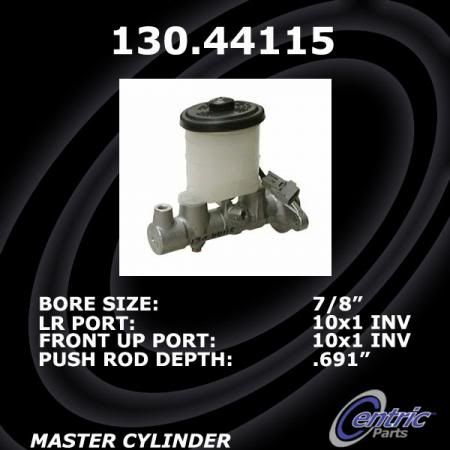

92 Paseo


95-01 Camry




http://board.tercelonline.com/viewthread.php?tid=47211#pid537544




92 Paseo WIP

Quote:
posted on another forum
...but point being, its a tercel. not meant to be fast, or to be an integra.


:haha:
View user's profile View All Posts By User
madRPM
TO Patron
******


Avatar


Posts: 1406
Registered: 12-2-2006
Location: Tampa, Fl
Member Is Offline

Mood: No Mood

[*] posted on 27-3-2012 at 10:15 PM



Thanks for clarifying! Looks like I'll get one soon.




View user's profile View All Posts By User
Throttler
über TO Member
*****




Posts: 1143
Registered: 26-5-2007
Location: Cincinnati OH
Member Is Offline

Mood: Deluged with semi finished sh it

[*] posted on 14-4-2012 at 11:44 PM


Okay got some stuff done today.

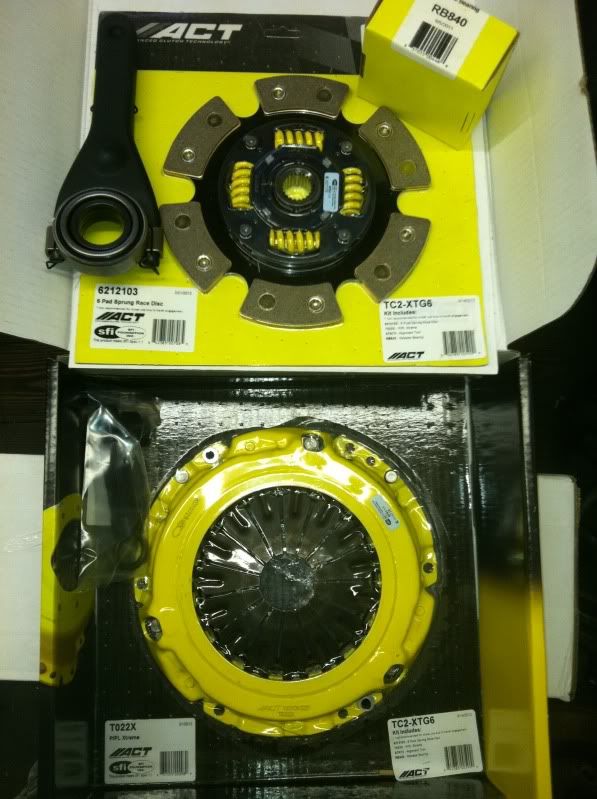

The clutch is in:

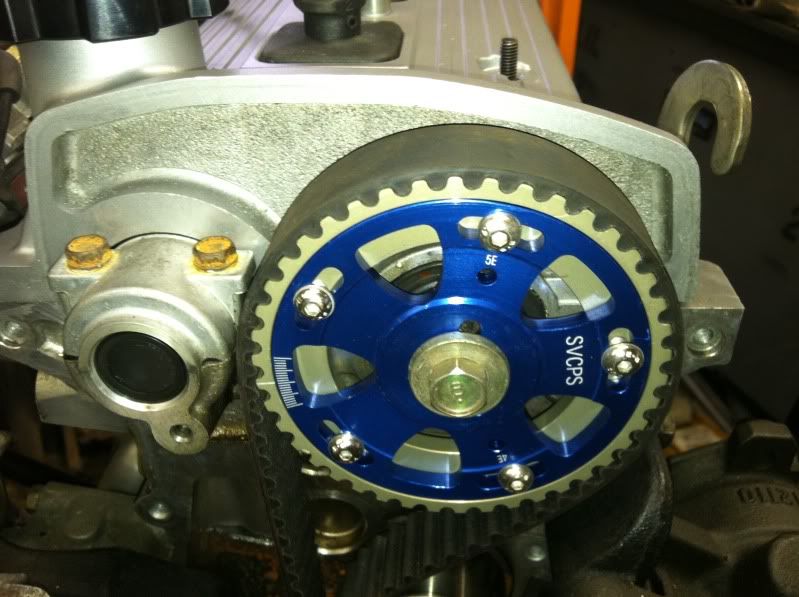

The Speedvision adjustable cam gear is here:

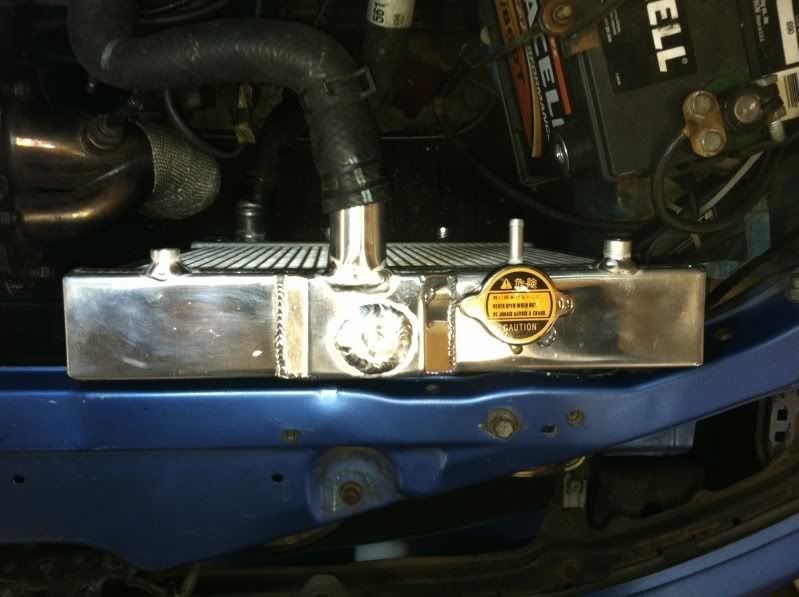

I mounted the Honda 1/2 width dual core radiator. Here's how I did it.

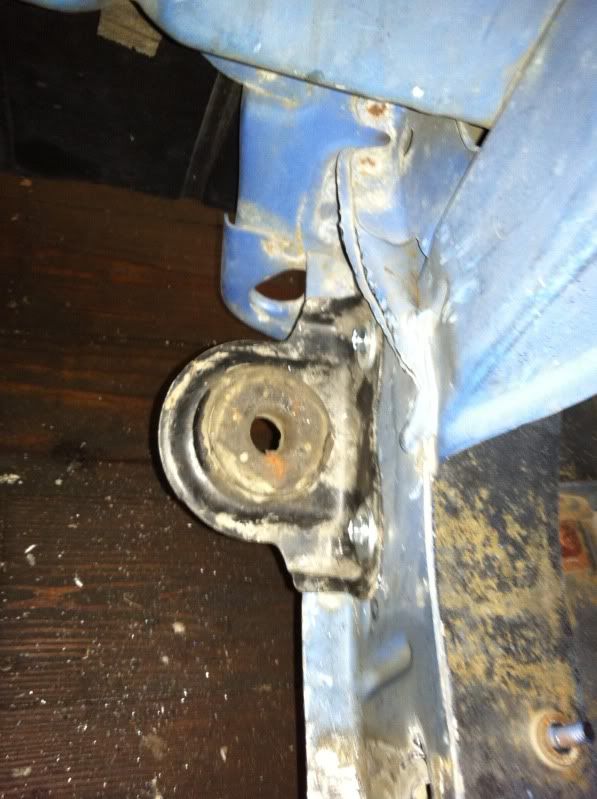

First I wanted to get rid of the stock welded on mount (drivers side), as I figured it would interfere with how I wanted to mount the radiator.

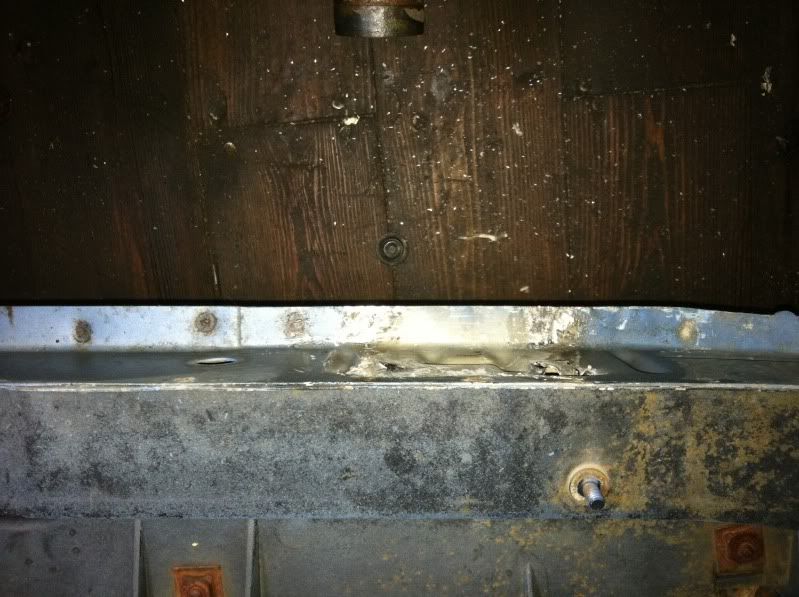

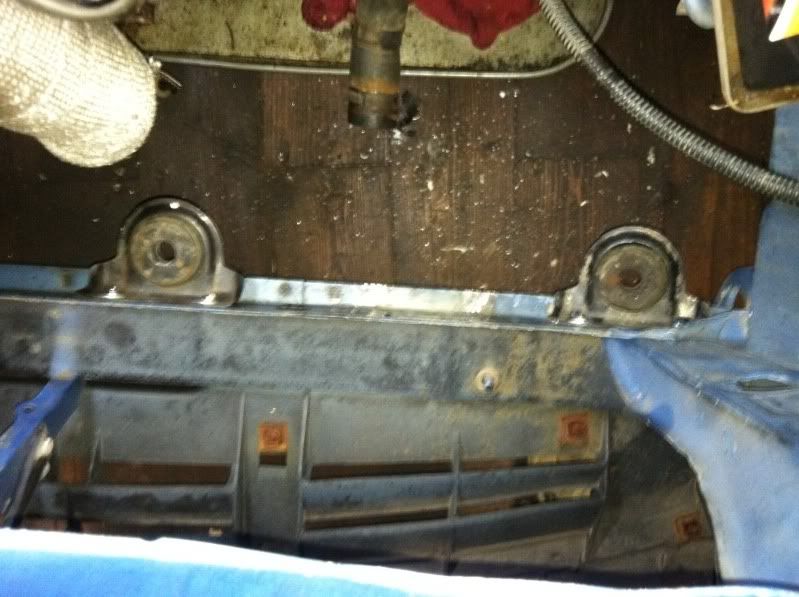

I used a drill to drill out the spot welds that I could get to, and a air chisel to get at the ones I couldn't.

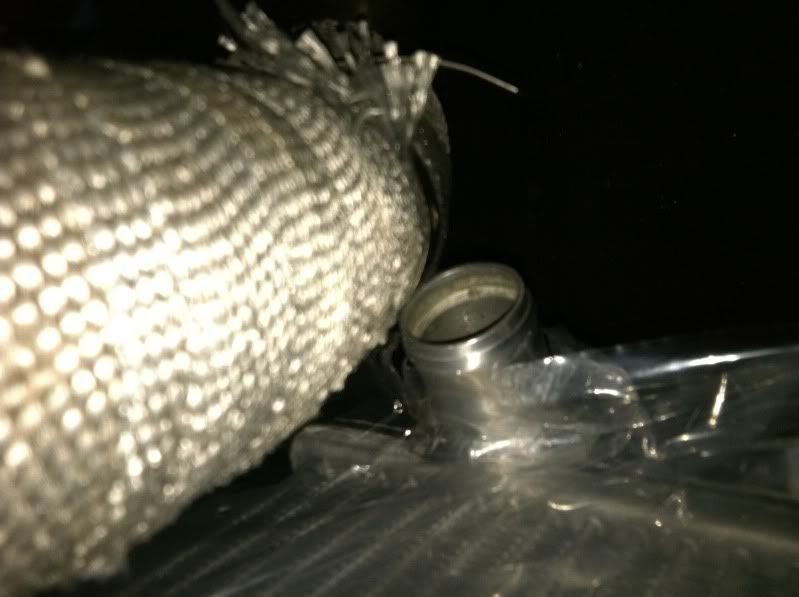

My first placement of the radiator was too close to the downpipe.

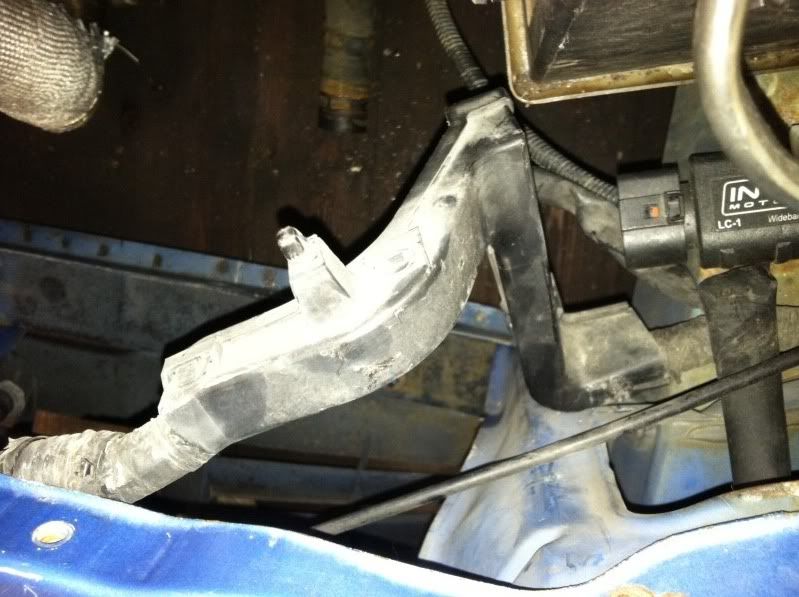

I was limited on how far I could push it over by this chassis harness.

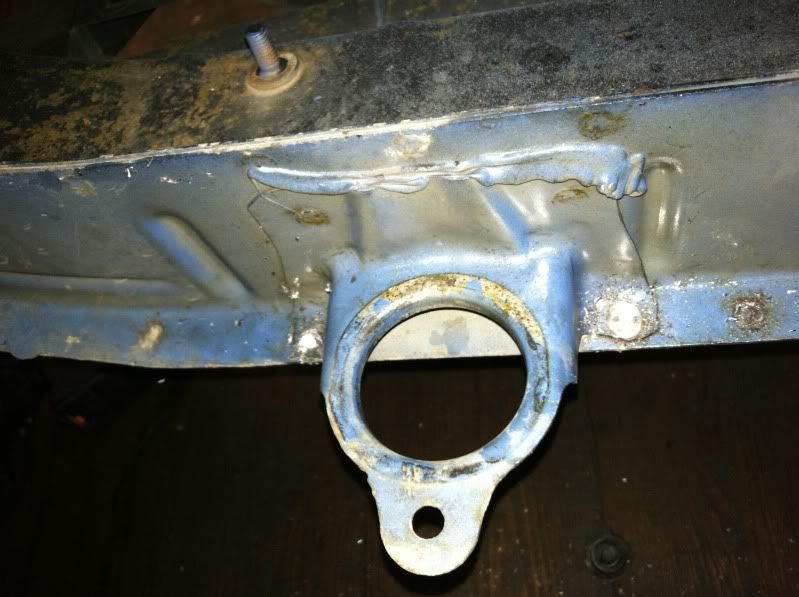

Here it is taken out.



I basically took this plastic formed conduit off and re-ran the harness thru the opening for the headlight. That gave me more room to push the radiator more towards the drivers side.

I went to the junkyard and got an assortment of Tercel/Paseo passenger side radiator mounts (the ones that bolt on), and some from like most Corolla's and Celica's IIRC. They are a slightly different configuration, and allows you to mount the radiator lower than with the Tercel/Paseo. I ended up using those to mount the Honda radiator. I mocked the 2 mounts up with vice grips and once I settled on a position I added some self tapping screws.

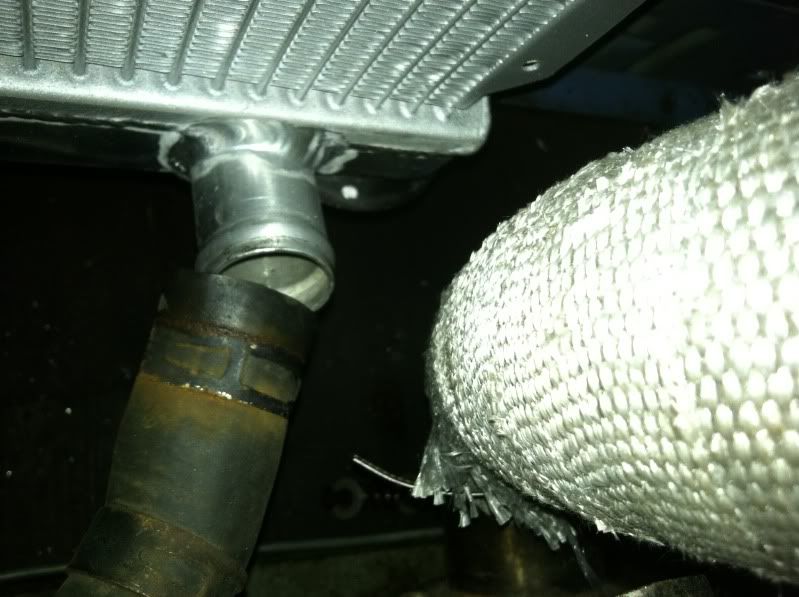

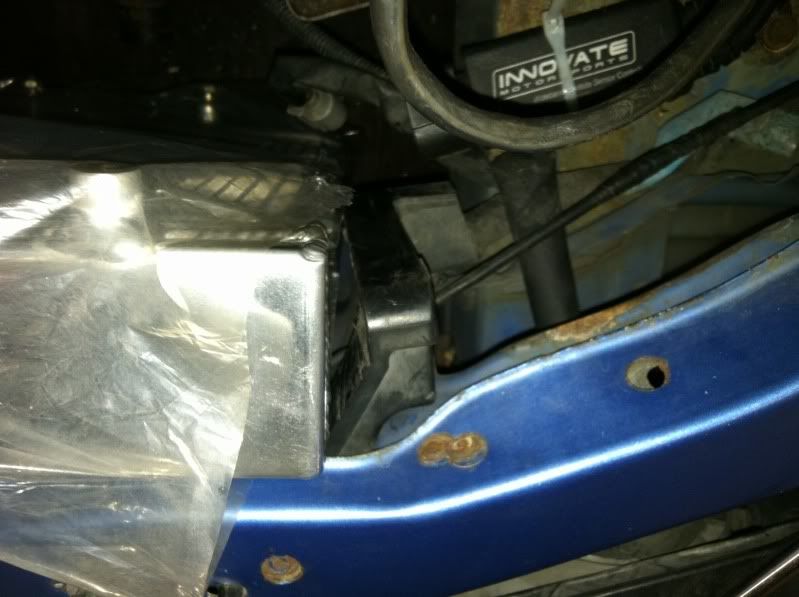

This got the radiator far enough to the drivers side that I had a decent amount of clearance to the downpipe. I would have liked more, but...

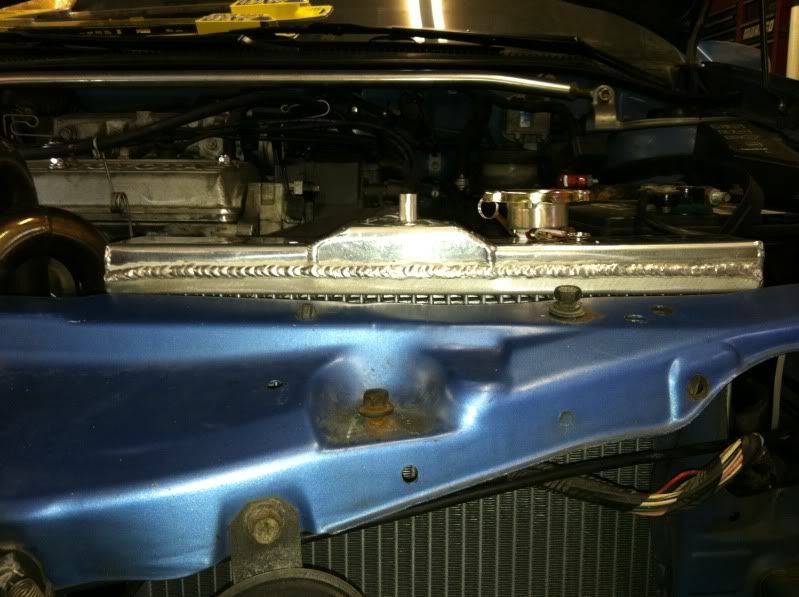

Here is the elevation view.



I still need to work on the top mount and get an electric slimline fan. The one I had was too big.

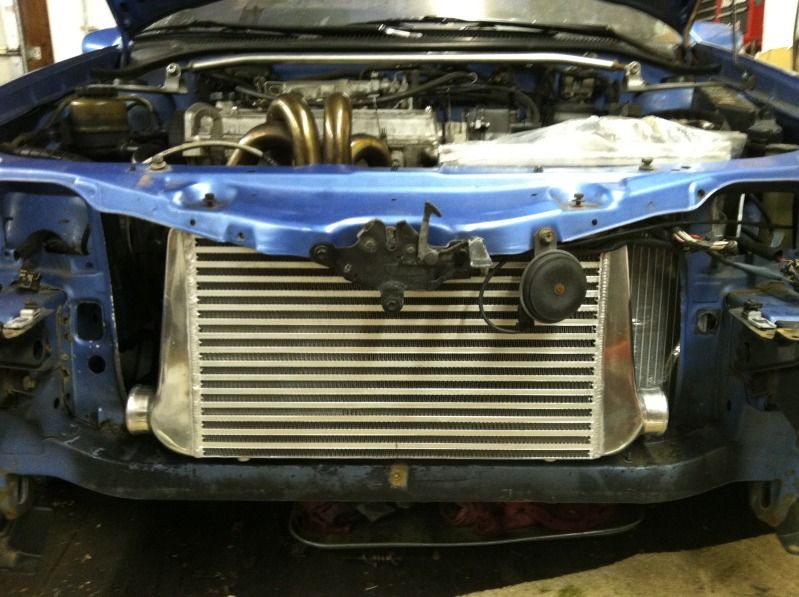

Now that I have this all mounted up I can start thinking about the intercooler.

Also I researched what is the highest factory Toyota alternator I could find. Looked at most 90's Corollas, Celica's, Camry's, Highlanders, Rav4's, Cressida's, MR2's, etc. The highest I could find was a 100A 92 MR2 w/ Power Steering built before 12/91 or 1/92. Those cars had an electrically driven PS pump, and I presume the extra amperage was used for that. I found that my 5efhe harness connector for the stock alternator would not work, but a 92 Paseo USDM 5efe plug will work. The power post is a little bigger in diameter than the stock 5efe harness eyelet, so I plan on drilling this out. Finally, one thing I found out is that the alternator input shaft where the pulley mounts is 17mm in diameter, whereas the stock 5e/4e/3e alternator input shaft is like 15.1mm. This would not normally be an issue, because you would just use the pulley that comes on the 92 MR2 alternator, but when I went to tried to install an aftermarket aluminum pulley, like an NST one for a 5efe, it doesnt' fit! So if you want an aftermarket alternator pulley for this 100A alternator, better find one for a 92 MR2, not a 5e/4e/3e!

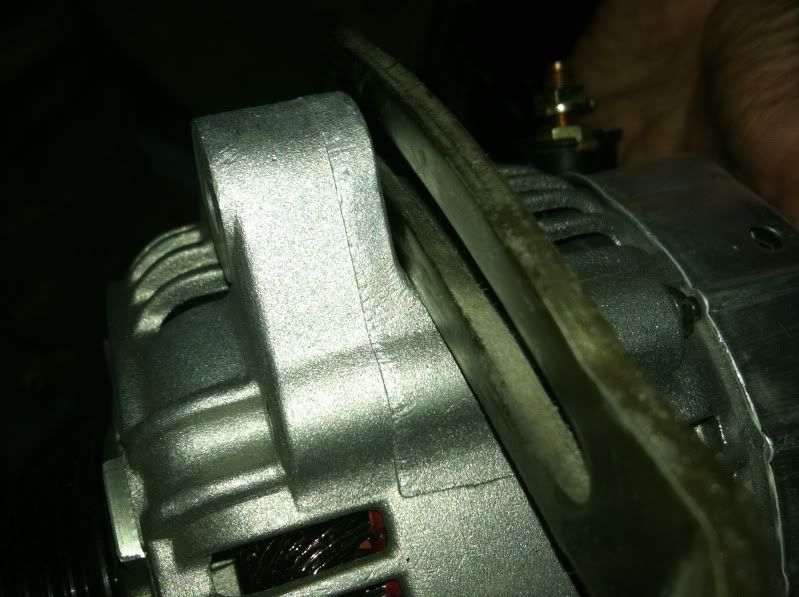

So the only physical mod I needed to do was to sharpen the radius from the upper mounting ear to the body of the alternator. The stock radius caused the strap to not want to line up.

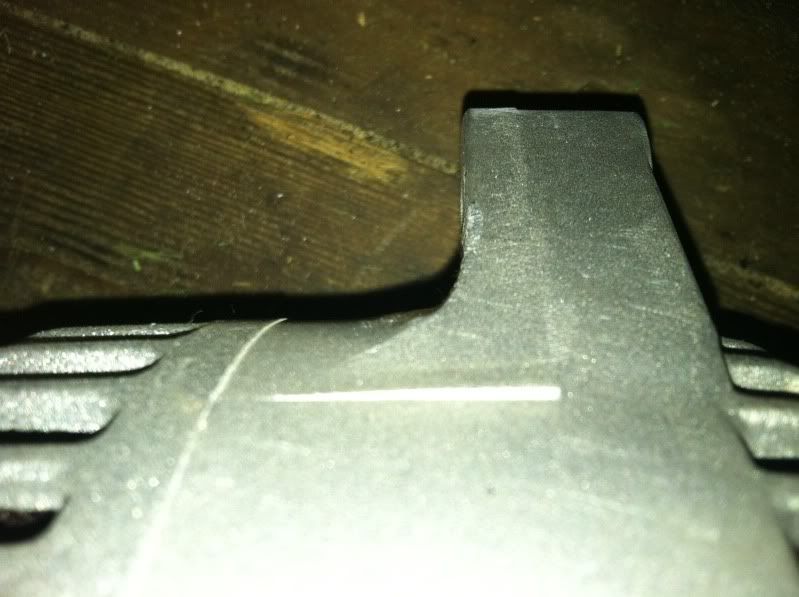

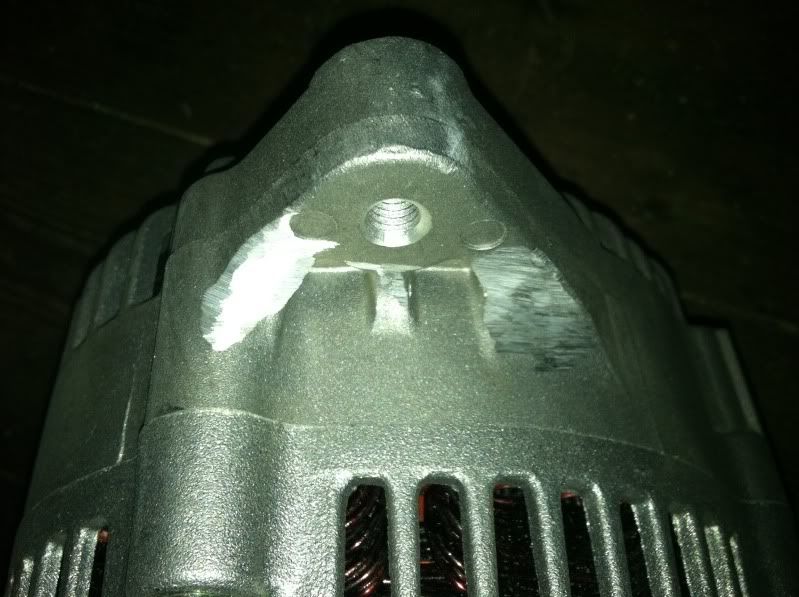

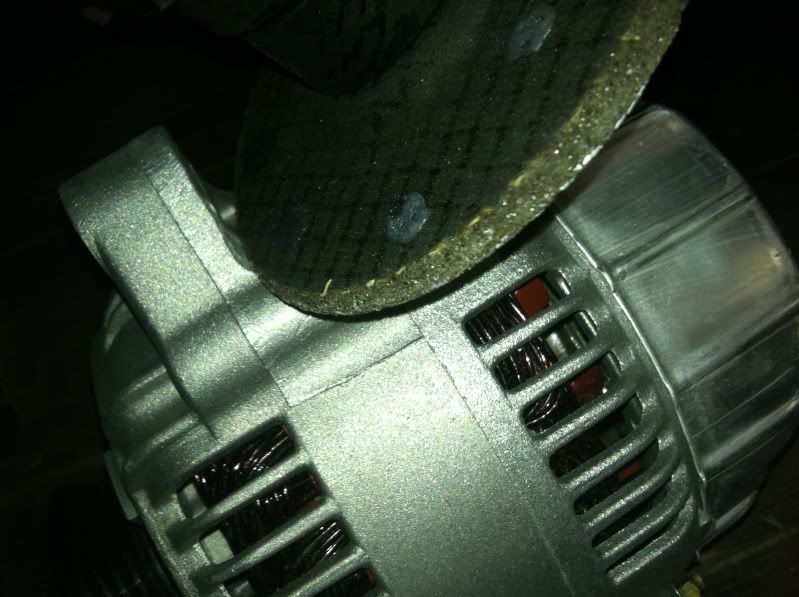

Here is my grinding action.

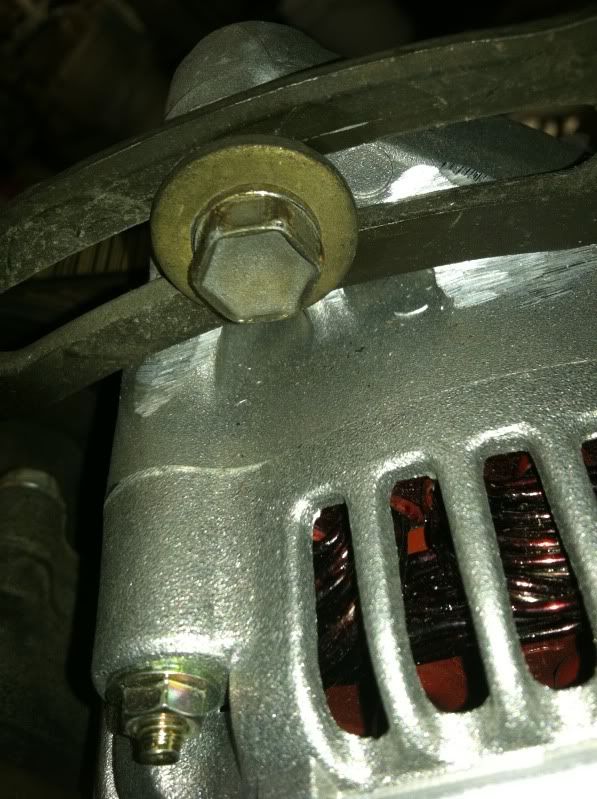

Now it mounts up nice and good.

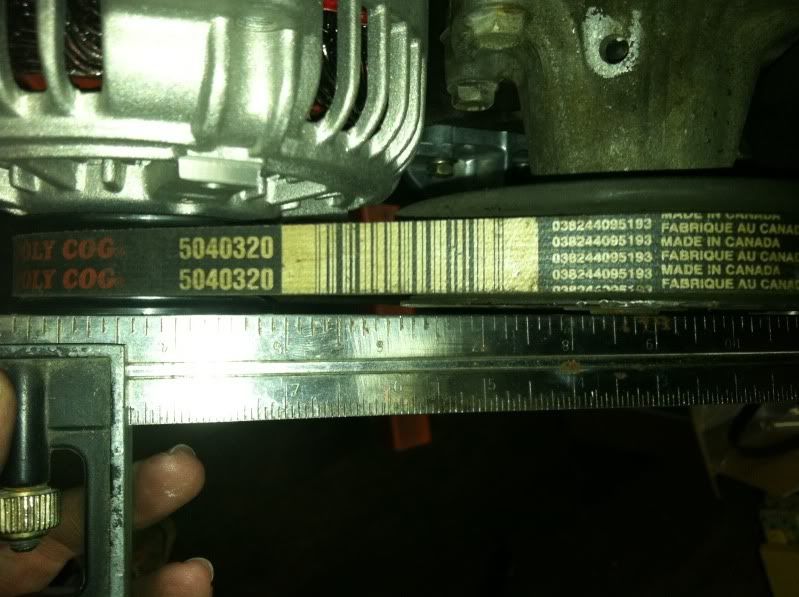

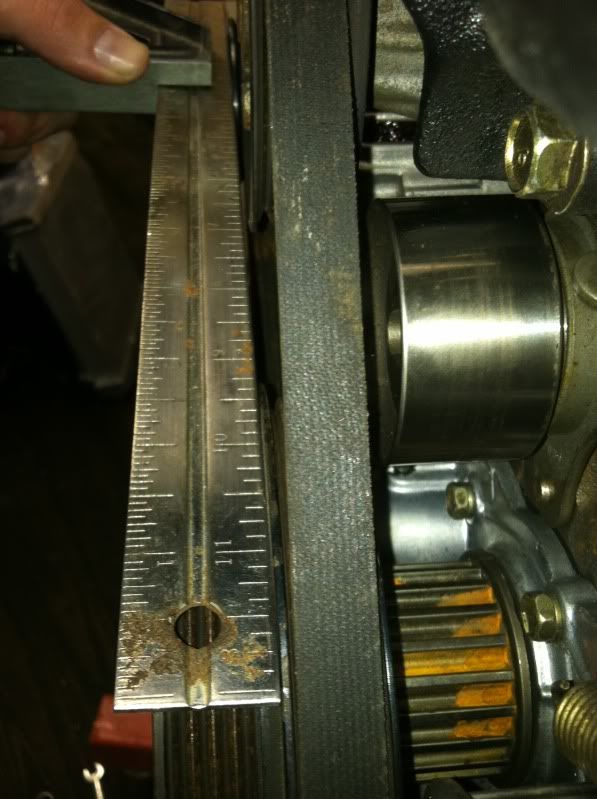

A couple shots of the alignment. About a 1/16" offset from the water pump pulley.



Good alignment with the crank. Makes me think that the water pump is in a little bit, not the new alternator.



Belt temporarily installed.



I also got the oil pump primed by spinning it with a drill, then installed the timing belt, and the 315cc injectors.

[Edited on 6-6-2012 by Throttler]




92 Paseo WIP

Quote:
posted on another forum
...but point being, its a tercel. not meant to be fast, or to be an integra.


:haha:
View user's profile View All Posts By User
Daox
TO Crew
******


Avatar


Posts: 2614
Registered: 11-7-2002
Location: Milwaukee, WI
Member Is Offline

Mood: No Mood.

[*] posted on 15-4-2012 at 07:34 AM


Why install the higher output alternator?



View user's profile Visit user's homepage View All Posts By User This user has MSN Messenger
rainmaker9239
über TO Member
*****


Avatar


Posts: 1866
Registered: 23-10-2009
Location: Sarasota, FL
Member Is Offline

Mood: 25psi Coming Soon!

[*] posted on 15-4-2012 at 09:21 AM


Nice work! :2thumbsup:



View user's profile View All Posts By User
Turd-cel
Senior TO Member
****


Avatar


Posts: 551
Registered: 28-11-2009
Member Is Offline


[*] posted on 15-4-2012 at 10:03 AM


That alternator is HUGE! That's like minus 25 hp to drive that thing lol
View user's profile View All Posts By User
Throttler
über TO Member
*****




Posts: 1143
Registered: 26-5-2007
Location: Cincinnati OH
Member Is Offline

Mood: Deluged with semi finished sh it

[*] posted on 15-4-2012 at 11:50 AM


Quote: Originally posted by Daox
Why install the higher output alternator?


Fair question...not sure if any of this justifies a 100A alternator, but I've added real HID's, LED tails (not sure if this is more or less than a the incandescents that were stock), and planning to go to coil pack ignition at some point (with the MSII).




92 Paseo WIP

Quote:
posted on another forum
...but point being, its a tercel. not meant to be fast, or to be an integra.


:haha:
View user's profile View All Posts By User
kennymp3
Owner of T.O.
*********


Avatar


Posts: 1670
Registered: 30-6-2007
Location: PNW
Member Is Offline

Mood: uʍop ǝpısdn

[*] posted on 15-4-2012 at 12:11 PM


I like that 100amp alternator mod...
Did you have to change out the plug on the back of it?

Also what Toyota did you get it from?
100A 92 MR2 w/ Power Steering built before 12/91 or 1/92

Is that the right one?

I believe the LED tails use less power as without the resistors they
flash rapidly as if the bulb was burn out?

Anyhow great WIP throttler, I dig all the pictures:thumbup:








View user's profile Visit user's homepage View All Posts By User
RDX-JinX
über TO Member
*****




Posts: 1324
Registered: 17-3-2008
Member Is Offline

Mood: R.I.P. Tomek

[*] posted on 15-4-2012 at 01:11 PM


leds use less power, i think HIDs too...

ive run a 1000wrms soundsystem off a stock auto tercel alternator for a while no real problems till the battery would drain at full blast... so you dont need the upgrade, i would even go with a smaller manual tercel alternator to save on weight and parasitic losses

what takes current is your ignition system and fuel pump but they dont take much i think the pump uses less than 10 amps so does the radiator fan, 5-10a at most




Life Happens... Experience it, enjoy it, all the little things, while you can.

For all your engine building needs
>>> http://www.tkrace.com/

View user's profile View All Posts By User This user has MSN Messenger
