Quote: Originally posted by sleepyrz

here is a more accurate representation


alf :dunno:

[Edited on 7/24/2011 by alfradio]




View user's profile View All Posts By User
ddavis
TO Patron
*****




Posts: 1381
Registered: 11-10-2006
Location: Phoenix, AZ
Member Is Offline

Mood: Blessed

[*] posted on 24-7-2011 at 05:44 PM


Quote: Originally posted by sleepyrz
depends on what you are using to trigger the VSV/solenoid


what will be triggering the solenoid?

haltech-not sure of amperagee output

msd switch-1.5 amps

granatelli switch-2 amps

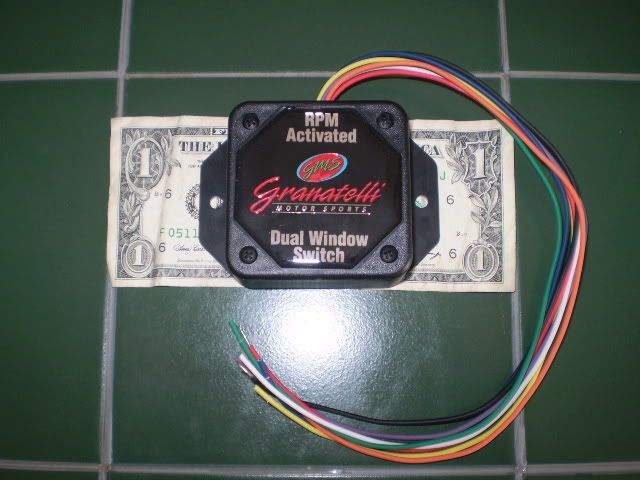

your best bet is a NOS window rpm switch they can drive solenoids directly up to ~15 amps http://www.holley.com/data/Products/Technical/199R10482rev4.pdf

or find a VSV with low amperage draw under 2 amps and get the granatelli

honestly though

the simplest method ive thought of so far is:

take off diaphragm and all that so all that is left is the arm to move the butterflies

then take it to an airplane/helicopter hobby shop hand it to him and say i need a servo motor twelve volt that will move this arm here back and forth this far

then get rpm switch to activate servo

and done

servo moves arm when rpm is reached


I just read the docs that came with my window switch and it says: "These do not carry enough current to directly drive solenoids".




I actually took the manifold to several places and couldn't find a unit to open the butterflies. I will get a relay or find a low amp VSV switch and use the vacuum.

[Edited on 7-24-2011 by ddavis]
View user's profile View All Posts By User
ddavis
TO Patron
*****




Posts: 1381
Registered: 11-10-2006
Location: Phoenix, AZ
Member Is Offline

Mood: Blessed

[*] posted on 24-7-2011 at 06:06 PM


Quote: Originally posted by sleepyrz
here is a more accurate representation



Resized to 640 by alf

[Edited on 7/24/2011 by alfradio]


Why is there a connection to the intake manifold?
View user's profile View All Posts By User
GT_REVVA
TO Showoff
******




Posts: 6056
Registered: 3-8-2002
Location: Mecca, EDEN
Member Is Offline

Mood: when you KNOW you're smarter than someone, don't be afraid to LET THEM KNOW. -my Mom..smartest person I know :deal:

[*] posted on 24-7-2011 at 06:13 PM


Quote: Originally posted by alfradio
Quote: Originally posted by sleepyrz

here is a more accurate representation


alf :dunno:


only things of concern to you are those in the original diagram you posted alf

the above modification of the diagram was just for those who dont know where a brake booster gets its vacuum from..:doh: he just included the check valve that's a part of the brake booster line to show that you tap the vsv into the line between the booster and the check valve.

i'm thinkin i may have to find my way down to sleepyrz and actually do this mod and take pictures :dunno:

it's really not that hard - do you guys really not know where a brake booster gets it's vacuum from?




he who knows and, knows he knows...he is a wise man , seek him
he who knows and, knows not he knows....he is asleep, wake him
he who knows not and, knows he knows not...he is a child, teach him
he who knows not and, knows not he knows not...he is a fool, shun him
Mulberry:The car is reliable, it has made at least 100 passes on the dyno and it has passed the GT_REVVA test
sleepyrz:yea and if he cant get it to break you sure as hell cant

krussure of nubz dreemz Ultrasound Baby Driving
DivisionOne Article Autoblog RR articleFACT THREAD TO Members' Modded Rides TO HORSEPOWER LEADER BOARD
VISIT MY STORE
View user's profile Visit user's homepage View All Posts By User
fowcbler
όber TO Member
*****


Avatar


Posts: 1647
Registered: 8-6-2007
Location: Wichita Falls, Texas
Member Is Offline

Mood: Happy to be driving my car again...

[*] posted on 24-7-2011 at 06:15 PM


I understand where it gets it from...I was just making the original diagram over complicated.

It makes sense now, I was more or less just looking for clarification that way when I get to that mod I already know exactly everything I need so I dont screw it up. I would prefer to ask stupid questions to be 100% correct, then refrain from asking and possibly be wrong.

[Edited on 7/24/2011 by fowcbler]




View user's profile Visit user's homepage View All Posts By User
GT_REVVA
TO Showoff
******




Posts: 6056
Registered: 3-8-2002
Location: Mecca, EDEN
Member Is Offline

Mood: when you KNOW you're smarter than someone, don't be afraid to LET THEM KNOW. -my Mom..smartest person I know :deal:

[*] posted on 24-7-2011 at 06:27 PM


Quote: Originally posted by alfradio


alf now gets it - according to this diagram (although the acis line would be more the same size as the one coming from the acis actuator - like actual vacuum hose size...and it would be tee'd into the booster line) but, alf gets the concept.:deal:

and no fowler, the check valves are independent of each other.

the one for the booster performs a separate function than that associated with the vsv..and the on associated with the vsv would be typically much smaller than that used for brake booster duty.:deal:




he who knows and, knows he knows...he is a wise man , seek him
he who knows and, knows not he knows....he is asleep, wake him
he who knows not and, knows he knows not...he is a child, teach him
he who knows not and, knows not he knows not...he is a fool, shun him
Mulberry:The car is reliable, it has made at least 100 passes on the dyno and it has passed the GT_REVVA test
sleepyrz:yea and if he cant get it to break you sure as hell cant

krussure of nubz dreemz Ultrasound Baby Driving
DivisionOne Article Autoblog RR articleFACT THREAD TO Members' Modded Rides TO HORSEPOWER LEADER BOARD
VISIT MY STORE
View user's profile Visit user's homepage View All Posts By User
fowcbler
όber TO Member
*****


Avatar


Posts: 1647
Registered: 8-6-2007
Location: Wichita Falls, Texas
Member Is Offline

Mood: Happy to be driving my car again...

[*] posted on 24-7-2011 at 06:59 PM


Yeah, after I typed what I did, i realized it wouldnt work...so I editted what I wanted to say.

Good to have clarification though, now I have peace of mind and the correct understanding for this concept when I go to hook it up....whenever that may be.




View user's profile Visit user's homepage View All Posts By User
alfradio
TO Patron & MVP
Thread Pruned
24-7-2011 at 07:12 PM
alfradio
TO Patron & MVP
Thread Pruned
24-7-2011 at 07:13 PM
alfradio
TO Patron & MVP
Thread Topped
24-7-2011 at 07:14 PM
Malibuguy
TO Crew
******


Avatar


Posts: 3241
Registered: 16-8-2006
Location: Westminster, MD
Member Is Offline

Mood: Im back...watch the fuck out

[*] posted on 24-7-2011 at 11:23 PM


Quote: Originally posted by GT_REVVA
:iwdumbass:

true talk - we actually marvel at this collectively.:thumbup:

like ''how the hell does he do that with paint? PAINT?''


thats nothing

i used to be a wiz @ Paint doing Photoshop like editing to pictures of cars...unfortunately all that past work died with the old computer i used to use


so...is there a possibility a fhe intake could make gains on a low revving DIS n/a or turbo? i wouldn't mind modifying one to try...i love welding aluminum




-Gregory...the exhaust freak & part of the TO.COM (_o_) crew ;)

-97 Whitehawk almost 300k DIS 14lbs 134/174 14.3@95 2.0 60ft. Track day beast. RIP...one day Ill be back

-97 coral rose pearl coupe. Stock with the side of stock
View user's profile Visit user's homepage View All Posts By User
sleepyrz
TO Crew
******


Avatar


Posts: 3116
Registered: 11-7-2002
Location: MIAMI
Member Is Offline

Mood: ターボ

[*] posted on 25-7-2011 at 05:36 PM


of course it would work

you just need DAOX's DIS spacer and youd be done as he made the spacer a transition plate from DIS to reg 5e ports already





5efhe .............................................Denso IRIDIUM PLUGS
GReddy E-MANAGE (BYP).................3" MANDREL BENT EXHAUST
no muffler they are for pussies.........GReddy FULL AUTO TIMER
DISABLED SPEED LIMITER...............FUEL CUT DEFENDER
COLORMATCHED BYP HARNESS........full coilovers
TiAl BOV.........................................TiAl wastegate
AVC-R boost controller.....................MSD digital 6 ignition
FRONT SWAYBAR.............................FRONT STRUTBAR
v-band flanged downpip....................CUSTOM INTAKE SETUP
GAUGES(BOOST,TACH)....................STARION FMIC
TRD plug wires.................................oh and i fucked your mom
===========================
catch you on the flipside,
Dave

this is your world im just living in it trying not to beat you to death
View user's profile Visit user's homepage View All Posts By User
Dzaster
TO Patron
*******


Avatar


Posts: 5583
Registered: 1-10-2007
Location: Kailua Kona, HI
Member Is Offline

Mood: Bwoop......... Bwooooooooooooop ..........Bwooooop

[*] posted on 25-7-2011 at 06:34 PM


Quote: Originally posted by sleepyrz

honestly though

the simplest method ive thought of so far is:

take off diaphragm and all that so all that is left is the arm to move the butterflies

then take it to an airplane/helicopter hobby shop hand it to him and say i need a servo motor twelve volt that will move this arm here back and forth this far

then get rpm switch to activate servo

and done

servo moves arm when rpm is reached

That's a killer and pretty simple idea. :2thumbsup:Just needa create some kinda apparatus/bracketry to hold the servo where you need it, to get the range of movement you need and "MONEY".

Of course you'd still need to electronically activate that servo, but the RPM activation part you guys already got down.




View user's profile View All Posts By User This user has MSN Messenger
GT_REVVA
TO Showoff
******




Posts: 6056
Registered: 3-8-2002
Location: Mecca, EDEN
Member Is Offline

Mood: when you KNOW you're smarter than someone, don't be afraid to LET THEM KNOW. -my Mom..smartest person I know :deal:

[*] posted on 25-7-2011 at 06:42 PM


yea - was even talkin about using one of the additional inj/output channels of the EMB as the RPM activator.:deal:

you know how we island boys use wha we got D.:smug:

[Edited on 25-7-2011 by GT_REVVA]




he who knows and, knows he knows...he is a wise man , seek him
he who knows and, knows not he knows....he is asleep, wake him
he who knows not and, knows he knows not...he is a child, teach him
he who knows not and, knows not he knows not...he is a fool, shun him
Mulberry:The car is reliable, it has made at least 100 passes on the dyno and it has passed the GT_REVVA test
sleepyrz:yea and if he cant get it to break you sure as hell cant

krussure of nubz dreemz Ultrasound Baby Driving
DivisionOne Article Autoblog RR articleFACT THREAD TO Members' Modded Rides TO HORSEPOWER LEADER BOARD
VISIT MY STORE
View user's profile Visit user's homepage View All Posts By User
fowcbler
όber TO Member
*****


Avatar


Posts: 1647
Registered: 8-6-2007
Location: Wichita Falls, Texas
Member Is Offline

Mood: Happy to be driving my car again...

[*] posted on 26-7-2011 at 08:32 AM


So those additional injector output channels could basically act as your RPM switch??? Would love to see how that might work, and actually see it work in a video or something.



View user's profile Visit user's homepage View All Posts By User
 Pages:  1    3  4

  Go To Top

Powered by XMB 1.9.11
XMB Forum Software © 2001-2010 The XMB Group
