[*] posted on 24-7-2011 at 02:14 PM


Quote: Originally posted by Kobesama

The reason the solenoid would not activate was due to the low
amperage output of the MSD rpm switch. These switches are meant
to run shift lights and therefore have a very low output of 1.5 amps.

Therefore a very easy solution was created which incorporated a
30amp relay. The wiring diagram I used for the switch and the relay
can be found HERE <- clicky

Also, during the whole intake rebuild, I purchased the gaskets at
http://www.amayama.com/ for a reasonable price of $35 USD
shipped and took about 3-4 weeks for delivery. I thought this was
pretty good seeing as I ordered the gaskets shortly after the whole
earthquake incident.

Part numbers:
17179-11010 Secondary runners (4 port)
17171-11010 Intake body (8 port)


Would a relay be needed?




View user's profile View All Posts By User
alfradio
TO Patron & MVP
******


Avatar


Posts: 3021
Registered: 26-7-2003
Location: Laurel, MD
Member Is Offline

Mood: Indigo

[*] posted on 24-7-2011 at 02:16 PM


Quote: Originally posted by ddavis

I think that I finally understand how to make this work but:

"now when the solenoid is opened or closed by the rpm switch
this allows the vacuum stored in the brake booster to act on the
ACIS actuator"


I need to know where to get this solenoid.


Aren't you glad I beat this "dead horse" just one more time?

alf :haha:




View user's profile View All Posts By User
alfradio
TO Patron & MVP
******


Avatar


Posts: 3021
Registered: 26-7-2003
Location: Laurel, MD
Member Is Offline

Mood: Indigo

[*] posted on 24-7-2011 at 02:55 PM


Quote: Originally posted by sleepyrz


that is a separate air filter so stuffdoesnt get in the lines and stop the
solenoid from opening/closing

its one of these


What are these called and where are they obtained?

alf :dunno:




View user's profile View All Posts By User
GT_REVVA
TO Showoff
******




Posts: 6056
Registered: 3-8-2002
Location: Mecca, EDEN
Member Is Offline

Mood: when you KNOW you're smarter than someone, don't be afraid to LET THEM KNOW. -my Mom..smartest person I know :deal:

[*] posted on 24-7-2011 at 02:59 PM


if the rpm switch is low output then, yes, a relay would be necessary.:deal:

btw, if you gotta beat dead horses to get more horses - go for it :lachen:




he who knows and, knows he knows...he is a wise man , seek him
he who knows and, knows not he knows....he is asleep, wake him
he who knows not and, knows he knows not...he is a child, teach him
he who knows not and, knows not he knows not...he is a fool, shun him
Mulberry:The car is reliable, it has made at least 100 passes on the dyno and it has passed the GT_REVVA test
sleepyrz:yea and if he cant get it to break you sure as hell cant

krussure of nubz dreemz Ultrasound Baby Driving
DivisionOne Article Autoblog RR articleFACT THREAD TO Members' Modded Rides TO HORSEPOWER LEADER BOARD
VISIT MY STORE
View user's profile Visit user's homepage View All Posts By User
fowcbler
όber TO Member
*****


Avatar


Posts: 1647
Registered: 8-6-2007
Location: Wichita Falls, Texas
Member Is Offline

Mood: Happy to be driving my car again...

[*] posted on 24-7-2011 at 03:26 PM


So a brake booster creates its own vacuum? Hmmm....I need to go to do some reading on how that system operates then.



View user's profile Visit user's homepage View All Posts By User
GT_REVVA
TO Showoff
******




Posts: 6056
Registered: 3-8-2002
Location: Mecca, EDEN
Member Is Offline

Mood: when you KNOW you're smarter than someone, don't be afraid to LET THEM KNOW. -my Mom..smartest person I know :deal:

[*] posted on 24-7-2011 at 03:36 PM


Quote: Originally posted by alfradio
Quote: Originally posted by sleepyrz


that is a separate air filter so stuffdoesnt get in the lines and stop the
solenoid from opening/closing

its one of these


What are these called and where are they obtained?

alf :dunno:



remove the img code from the pic above and you'll see they are called 'Air-Vacuum-Filter'

the link Doug posted of the vsv shows the 3rd nipple (leg) of the vsv is already equipped with an air filter (the cylindrical looking knob at the end of it).:deal:




he who knows and, knows he knows...he is a wise man , seek him
he who knows and, knows not he knows....he is asleep, wake him
he who knows not and, knows he knows not...he is a child, teach him
he who knows not and, knows not he knows not...he is a fool, shun him
Mulberry:The car is reliable, it has made at least 100 passes on the dyno and it has passed the GT_REVVA test
sleepyrz:yea and if he cant get it to break you sure as hell cant

krussure of nubz dreemz Ultrasound Baby Driving
DivisionOne Article Autoblog RR articleFACT THREAD TO Members' Modded Rides TO HORSEPOWER LEADER BOARD
VISIT MY STORE
View user's profile Visit user's homepage View All Posts By User
GT_REVVA
TO Showoff
******




Posts: 6056
Registered: 3-8-2002
Location: Mecca, EDEN
Member Is Offline

Mood: when you KNOW you're smarter than someone, don't be afraid to LET THEM KNOW. -my Mom..smartest person I know :deal:

[*] posted on 24-7-2011 at 03:40 PM


Quote: Originally posted by fowcbler
So a brake booster creates its own vacuum? Hmmm....I need to go to do some reading on how that system operates then.


where did you get that from? it doesnt create vacuum - it stores it (via the one way valve inline) so your brake will still have power assist when vacuum is absent.

ever try to apply the brakes when the booster is bad or when there's no vacuum assist?




he who knows and, knows he knows...he is a wise man , seek him
he who knows and, knows not he knows....he is asleep, wake him
he who knows not and, knows he knows not...he is a child, teach him
he who knows not and, knows not he knows not...he is a fool, shun him
Mulberry:The car is reliable, it has made at least 100 passes on the dyno and it has passed the GT_REVVA test
sleepyrz:yea and if he cant get it to break you sure as hell cant

krussure of nubz dreemz Ultrasound Baby Driving
DivisionOne Article Autoblog RR articleFACT THREAD TO Members' Modded Rides TO HORSEPOWER LEADER BOARD
VISIT MY STORE
View user's profile Visit user's homepage View All Posts By User
sleepyrz
TO Crew
******


Avatar


Posts: 3116
Registered: 11-7-2002
Location: MIAMI
Member Is Offline

Mood: ターボ

[*] posted on 24-7-2011 at 03:51 PM


depends on what you are using to trigger the VSV/solenoid


what will be triggering the solenoid?

haltech-not sure of amperagee output

msd switch-1.5 amps

granatelli switch-2 amps

your best bet is a NOS window rpm switch they can drive solenoids directly up to ~15 amps http://www.holley.com/data/Products/Technical/199R10482rev4.pdf

or find a VSV with low amperage draw under 2 amps and get the granatelli

honestly though

the simplest method ive thought of so far is:

take off diaphragm and all that so all that is left is the arm to move the butterflies

then take it to an airplane/helicopter hobby shop hand it to him and say i need a servo motor twelve volt that will move this arm here back and forth this far

then get rpm switch to activate servo

and done

servo moves arm when rpm is reached





5efhe .............................................Denso IRIDIUM PLUGS
GReddy E-MANAGE (BYP).................3" MANDREL BENT EXHAUST
no muffler they are for pussies.........GReddy FULL AUTO TIMER
DISABLED SPEED LIMITER...............FUEL CUT DEFENDER
COLORMATCHED BYP HARNESS........full coilovers
TiAl BOV.........................................TiAl wastegate
AVC-R boost controller.....................MSD digital 6 ignition
FRONT SWAYBAR.............................FRONT STRUTBAR
v-band flanged downpip....................CUSTOM INTAKE SETUP
GAUGES(BOOST,TACH)....................STARION FMIC
TRD plug wires.................................oh and i fucked your mom
===========================
catch you on the flipside,
Dave

this is your world im just living in it trying not to beat you to death
View user's profile Visit user's homepage View All Posts By User
GT_REVVA
TO Showoff
******




Posts: 6056
Registered: 3-8-2002
Location: Mecca, EDEN
Member Is Offline

Mood: when you KNOW you're smarter than someone, don't be afraid to LET THEM KNOW. -my Mom..smartest person I know :deal:

[*] posted on 24-7-2011 at 03:57 PM


i mentioned the servo option off the air

bottom line is though - there are options.

btw, is this a schitcky yet?:dunno:




he who knows and, knows he knows...he is a wise man , seek him
he who knows and, knows not he knows....he is asleep, wake him
he who knows not and, knows he knows not...he is a child, teach him
he who knows not and, knows not he knows not...he is a fool, shun him
Mulberry:The car is reliable, it has made at least 100 passes on the dyno and it has passed the GT_REVVA test
sleepyrz:yea and if he cant get it to break you sure as hell cant

krussure of nubz dreemz Ultrasound Baby Driving
DivisionOne Article Autoblog RR articleFACT THREAD TO Members' Modded Rides TO HORSEPOWER LEADER BOARD
VISIT MY STORE
View user's profile Visit user's homepage View All Posts By User
fowcbler
όber TO Member
*****


Avatar


Posts: 1647
Registered: 8-6-2007
Location: Wichita Falls, Texas
Member Is Offline

Mood: Happy to be driving my car again...

[*] posted on 24-7-2011 at 04:04 PM


That diagram doesn't show where the booster gets its vacuum from...
Man I am confused. When I get home, ill draw what I'm talking about that's confusing me in paint...




View user's profile Visit user's homepage View All Posts By User
GT_REVVA
TO Showoff
******




Posts: 6056
Registered: 3-8-2002
Location: Mecca, EDEN
Member Is Offline

Mood: when you KNOW you're smarter than someone, don't be afraid to LET THEM KNOW. -my Mom..smartest person I know :deal:

[*] posted on 24-7-2011 at 04:12 PM


jus look under your hood and you'll see where the vacuum comes from - a hose/line from the intake manifold.

im thinking that diagram was drawn with the assumption that one would already know where a brake booster gets vacuum from.:dunno:




he who knows and, knows he knows...he is a wise man , seek him
he who knows and, knows not he knows....he is asleep, wake him
he who knows not and, knows he knows not...he is a child, teach him
he who knows not and, knows not he knows not...he is a fool, shun him
Mulberry:The car is reliable, it has made at least 100 passes on the dyno and it has passed the GT_REVVA test
sleepyrz:yea and if he cant get it to break you sure as hell cant

krussure of nubz dreemz Ultrasound Baby Driving
DivisionOne Article Autoblog RR articleFACT THREAD TO Members' Modded Rides TO HORSEPOWER LEADER BOARD
VISIT MY STORE
View user's profile Visit user's homepage View All Posts By User
fowcbler
όber TO Member
*****


Avatar


Posts: 1647
Registered: 8-6-2007
Location: Wichita Falls, Texas
Member Is Offline

Mood: Happy to be driving my car again...

[*] posted on 24-7-2011 at 04:13 PM


I like the sound of that servo electronic option tho...



View user's profile Visit user's homepage View All Posts By User
fowcbler
όber TO Member
*****


Avatar


Posts: 1647
Registered: 8-6-2007
Location: Wichita Falls, Texas
Member Is Offline

Mood: Happy to be driving my car again...

[*] posted on 24-7-2011 at 04:17 PM


That's what is confusing me....I know where it gets it from, but accoding to how it should be set up with that diagram u would split that booster line so it gets its vacuum then it also controls the solenoid.



View user's profile Visit user's homepage View All Posts By User
sleepyrz
TO Crew
******


Avatar


Posts: 3116
Registered: 11-7-2002
Location: MIAMI
Member Is Offline

Mood: ターボ

[*] posted on 24-7-2011 at 04:29 PM

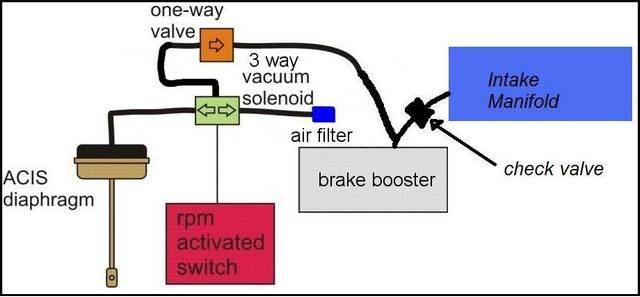

here is a more accurate representation



Resized to 640 by alf

[Edited on 7/24/2011 by alfradio]





5efhe .............................................Denso IRIDIUM PLUGS
GReddy E-MANAGE (BYP).................3" MANDREL BENT EXHAUST
no muffler they are for pussies.........GReddy FULL AUTO TIMER
DISABLED SPEED LIMITER...............FUEL CUT DEFENDER
COLORMATCHED BYP HARNESS........full coilovers
TiAl BOV.........................................TiAl wastegate
AVC-R boost controller.....................MSD digital 6 ignition
FRONT SWAYBAR.............................FRONT STRUTBAR
v-band flanged downpip....................CUSTOM INTAKE SETUP
GAUGES(BOOST,TACH)....................STARION FMIC
TRD plug wires.................................oh and i fucked your mom
===========================
catch you on the flipside,
Dave

this is your world im just living in it trying not to beat you to death
View user's profile Visit user's homepage View All Posts By User
GT_REVVA
TO Showoff
******




Posts: 6056
Registered: 3-8-2002
Location: Mecca, EDEN
Member Is Offline

Mood: when you KNOW you're smarter than someone, don't be afraid to LET THEM KNOW. -my Mom..smartest person I know :deal:

[*] posted on 24-7-2011 at 04:31 PM


POIFEC!!!!!


schticky on aisle 'low end tork':lachen:




he who knows and, knows he knows...he is a wise man , seek him
he who knows and, knows not he knows....he is asleep, wake him
he who knows not and, knows he knows not...he is a child, teach him
he who knows not and, knows not he knows not...he is a fool, shun him
Mulberry:The car is reliable, it has made at least 100 passes on the dyno and it has passed the GT_REVVA test
sleepyrz:yea and if he cant get it to break you sure as hell cant

krussure of nubz dreemz Ultrasound Baby Driving
DivisionOne Article Autoblog RR articleFACT THREAD TO Members' Modded Rides TO HORSEPOWER LEADER BOARD
VISIT MY STORE
View user's profile Visit user's homepage View All Posts By User
 Pages:  1  2    4

  Go To Top

Powered by XMB 1.9.11
XMB Forum Software © 2001-2010 The XMB Group
