[*] posted on 30-10-2010 at 09:28 PM


any update? =D
View user's profile View All Posts By User
ruggiero06
Junior TO Member
***


Avatar


Posts: 423
Registered: 18-2-2008
Location: Las Vegas, NV
Member Is Offline

Mood: Paint and paste removal....fml

[*] posted on 30-10-2010 at 09:34 PM


Corolla wheel studs are longer. Idk what studs you found but I would like to know. Corolla brake swap kicks ass. I can easily lock my wheels up at 85+ and thats when my car was at factory weight. Now that Im almost 300lbs lighter its gonna be crazy.

Good ass find on the mazda rotor. I made my own spacers for the corolla drilled and slotted rotors I have and its been fine for over a year now with no problems. But if theres a direct fit than thats the way to go. If you get jy calipers rebuild them.



EDIT: Just saw your post about he wheel studs....good info as usual bro
:thumbup::thumbup::thumbup::thumbup:

[Edited on 10-31-2010 by ruggiero06]




My 3sgte rebuild and swap:
Part 1 Part 2
View user's profile View All Posts By User
sleepyrz
TO Crew
******


Avatar


Posts: 3116
Registered: 11-7-2002
Location: MIAMI
Member Is Offline

Mood: ターボ

[*] posted on 31-10-2010 at 01:53 PM

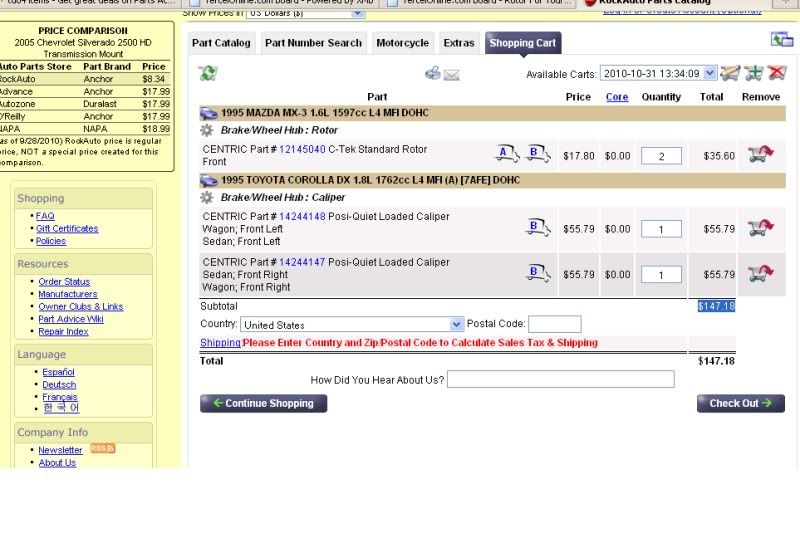

so basically




thats 2 95 mx-3 rotors

and 2 93-97 corolla loaded calipers[L][R]

loaded means it comes with the bracket and the pads already attached

all for 147 dollars

not bad at all

[Edited on 10/31/10 by sleepyrz]





5efhe .............................................Denso IRIDIUM PLUGS
GReddy E-MANAGE (BYP).................3" MANDREL BENT EXHAUST
no muffler they are for pussies.........GReddy FULL AUTO TIMER
DISABLED SPEED LIMITER...............FUEL CUT DEFENDER
COLORMATCHED BYP HARNESS........full coilovers
TiAl BOV.........................................TiAl wastegate
AVC-R boost controller.....................MSD digital 6 ignition
FRONT SWAYBAR.............................FRONT STRUTBAR
v-band flanged downpip....................CUSTOM INTAKE SETUP
GAUGES(BOOST,TACH)....................STARION FMIC
TRD plug wires.................................oh and i fucked your mom
===========================
catch you on the flipside,
Dave

this is your world im just living in it trying not to beat you to death
View user's profile Visit user's homepage View All Posts By User
SlammedSix
Senior TO Member
****


Avatar


Posts: 564
Registered: 10-9-2008
Location: Ventura, CA
Member Is Offline


[*] posted on 31-10-2010 at 03:56 PM

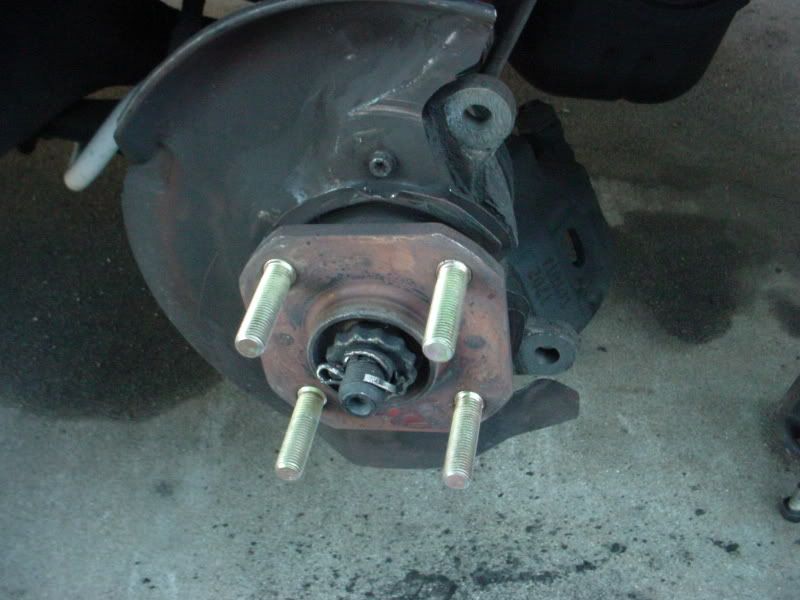

I haven't had time to toss everything on with my new wheel spacers and extended wheel studs.

The setup I bough it off ebay, a hub centric 10mm spacer with the extended wheel studs. I just need to get off my ass and do it.:haha:

Also I had found a decent longer OEM wheel stud from a 2007 Toyota 4 runner (45mm I believe), but when looking at it in person it looked different, but my new extended wheel studs look to be the same as those. So they might fit and be a cheaper OEM replacement. I have a spare hub so I will try both of them and post my results.




View user's profile View All Posts By User
SlammedSix
Senior TO Member
****


Avatar


Posts: 564
Registered: 10-9-2008
Location: Ventura, CA
Member Is Offline


[*] posted on 2-11-2010 at 10:54 PM


!!Update!!

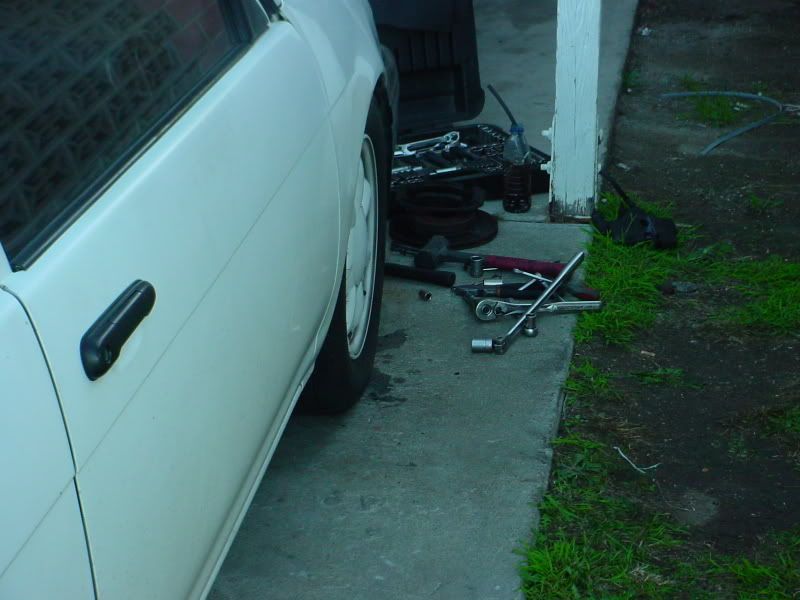

So today I got off my ass and went to work on my car.

First I tossed on my new extended wheel studs.

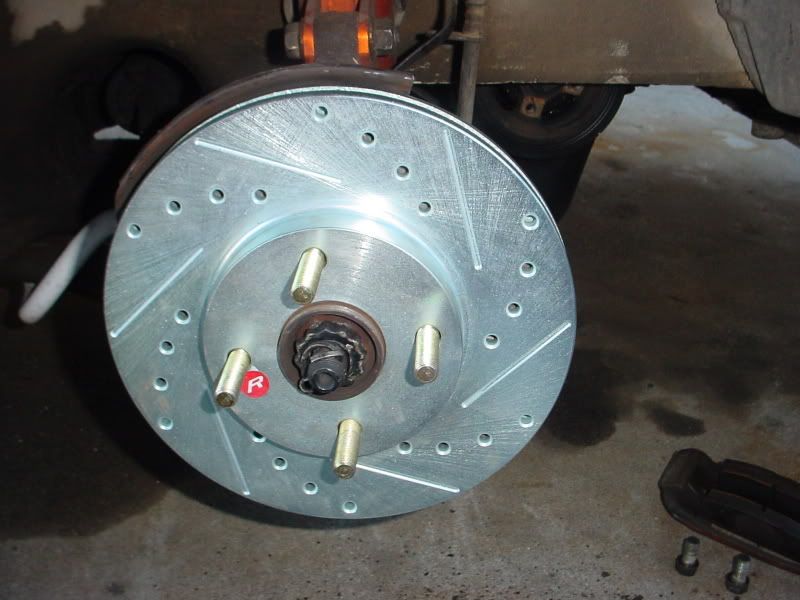

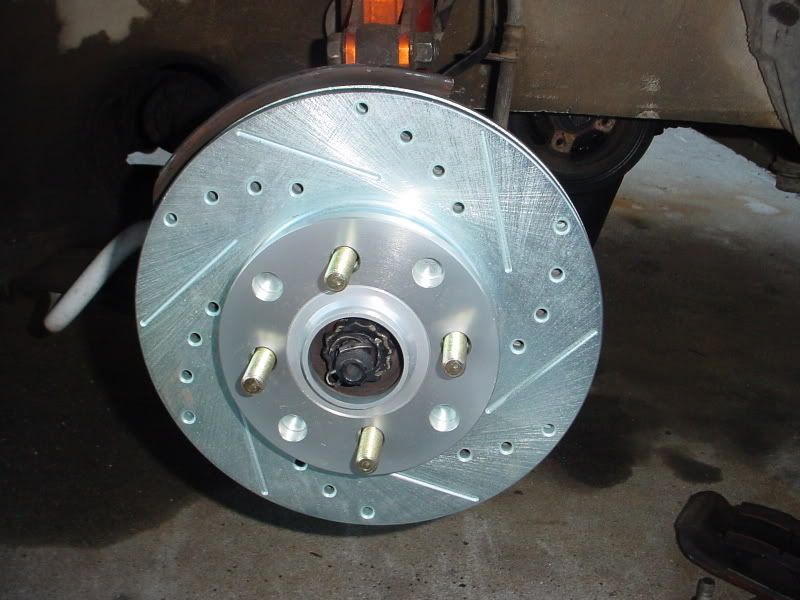

Rotors tossed on


10mm Spacers used to take my Miata rims from a 45mm offset to a 35mm offset

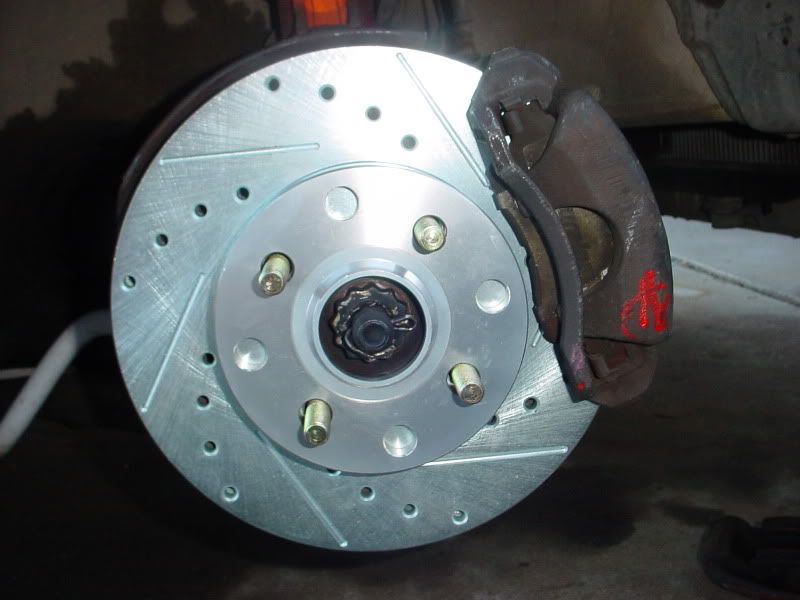

Spacer tossed on


Caliper tossed on

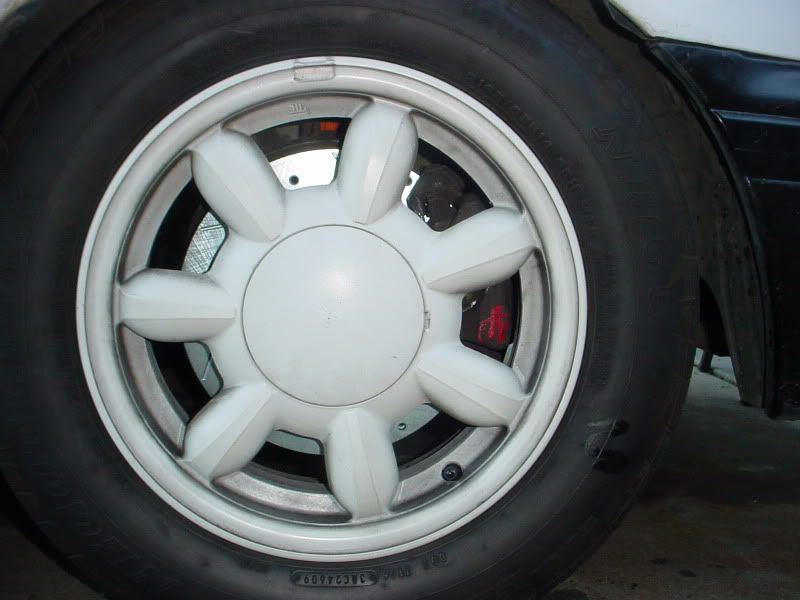

Rim on


Offset After


:2thumbsup:

[Edited on 22-11-2010 by SlammedSix]




View user's profile View All Posts By User
1991tercelasdf
über TO Member
*****


Avatar


Posts: 1003
Registered: 19-11-2005
Location: Westminster, MD
Member Is Offline

Mood: shes a squirter

[*] posted on 20-11-2010 at 11:06 PM


i am going to do this next week to my new 'cel. it needs new brakes anyway.....




im back with tercel #7!
'94 tercel
5efte/5spd
megasquirt
aasco flywheel/ACT stage 2 6 puck clutch
STAGG struts w/ Custom rate Ground Control coils
195/50-15 Dunlop Direzza DZ-102 on 15" steelies
View user's profile View All Posts By User
RDX-JinX
über TO Member
*****




Posts: 1324
Registered: 17-3-2008
Member Is Offline

Mood: R.I.P. Tomek

[*] posted on 20-11-2010 at 11:59 PM


you mean, 45 to 35 ?

and ARP celica wheel studs or the 07 4 runner you mentioned ?

[Edited on 21-11-2010 by RDX-JinX]




Life Happens... Experience it, enjoy it, all the little things, while you can.

For all your engine building needs
>>> http://www.tkrace.com/

View user's profile View All Posts By User This user has MSN Messenger
SlammedSix
Senior TO Member
****


Avatar


Posts: 564
Registered: 10-9-2008
Location: Ventura, CA
Member Is Offline


[*] posted on 21-11-2010 at 12:57 AM


Quote:
Originally posted by RDX-JinX
you mean, 45 to 35 ?

and ARP celica wheel studs or the 07 4 runner you mentioned ?

Yeah, to a 35mm offset. Thanks (Fixed on post as well)

You don't need to run longer studs, but I needed to cause my OEM studs were at their max with my Miata rims.




View user's profile View All Posts By User
RDX-JinX
über TO Member
*****




Posts: 1324
Registered: 17-3-2008
Member Is Offline

Mood: R.I.P. Tomek

[*] posted on 21-11-2010 at 01:13 AM


im just askin cuz...

"Also I had found a decent longer OEM wheel stud from a 2007 Toyota 4 runner (45mm I believe), but when looking at it in person it looked different, but my new extended wheel studs look to be the same as those. So they might fit and be a cheaper OEM replacement. I have a spare hub so I will try both of them and post my results."

and those look much longer than any OEM ones...
nice job :thumbup:




Life Happens... Experience it, enjoy it, all the little things, while you can.

For all your engine building needs
>>> http://www.tkrace.com/

View user's profile View All Posts By User This user has MSN Messenger
SlammedSix
Senior TO Member
****


Avatar


Posts: 564
Registered: 10-9-2008
Location: Ventura, CA
Member Is Offline


[*] posted on 21-11-2010 at 03:13 AM


Quote:
Originally posted by RDX-JinX
im just askin cuz...

"Also I had found a decent longer OEM wheel stud from a 2007 Toyota 4 runner (45mm I believe), but when looking at it in person it looked different, but my new extended wheel studs look to be the same as those. So they might fit and be a cheaper OEM replacement. I have a spare hub so I will try both of them and post my results."

and those look much longer than any OEM ones...
nice job :thumbup:

Yeah, the 4runner ones will fit the Terseo hub. So anyone looking for a longer stud, you can pick these up from your local Autozone for 2 bucks each




View user's profile View All Posts By User
GraphiteTercel
über TO Member
*****


Avatar


Posts: 1342
Registered: 9-3-2005
Location: Houston, TX
Member Is Offline

Mood: Vrrrrrmmmm Pssss!

[*] posted on 21-11-2010 at 10:41 PM


OK i tried this rotor but this is what i found.

1. I had to grind the hub for the rotor to go all the way in. If you look at the hub, the round part had to be grinded.

2. Once the rotor is in, and the caliper braket is on, the rotor is not centered with the braket... the rotor is more to the rear and it rubs against the fitting kit for the brake pad (the shim that keeps the pad in place)

3. The backing plate has to be bent back and the studs holding it are too close to the rear of the rotor


This rotor was bought from O'reileys






2012 Lexus IS 250 F-Sport
95 Tercel Turbo 4e-fte td04L
91 Celica

15.9 @ 82.9mph
View user's profile Visit user's homepage View All Posts By User
SlammedSix
Senior TO Member
****


Avatar


Posts: 564
Registered: 10-9-2008
Location: Ventura, CA
Member Is Offline


[*] posted on 22-11-2010 at 04:47 PM


Quote:
Originally posted by aroldoarevalo
OK i tried this rotor but this is what i found.

1. I had to grind the hub for the rotor to go all the way in. If you look at the hub, the round part had to be grinded.

2. Once the rotor is in, and the caliper braket is on, the rotor is not centered with the braket... the rotor is more to the rear and it rubs against the fitting kit for the brake pad (the shim that keeps the pad in place)

3. The backing plate has to be bent back and the studs holding it are too close to the rear of the rotor


This rotor was bought from O'reileys


I just re-read my posts and I did not say anything about the grinding:oops:. But yes I had to do that as well, my rotor went about half way on and I just had to hit the edged real quick with my grinder.


The rotor does not sit OEM center, I would say 2mm out more and it would sit perfect. But it cleared everything on my car and spun freely. I know people say a 3mm spacer is needed for the Corolla rotor to work and this rotor is 3mm less offset, So I wonder how the Corolla rotor sits?

I have been driving on my brake setup for a while now and have not had any issues.

[Edited on 22-11-2010 by SlammedSix]




View user's profile View All Posts By User
Throttler
über TO Member
*****




Posts: 1143
Registered: 26-5-2007
Location: Cincinnati OH
Member Is Offline

Mood: Deluged with semi finished sh it

[*] posted on 23-11-2010 at 09:57 AM


IIRC, without the spacer the Corolla rotor hits the inner surface of the rotor on the caliper bracket. With the 3mm spacer it provides that amount of clearance b/w the aforementioned surfaces, and on the parts that I had at the time, centered ther rotor b/w the caliper bracket almost perfectly. I used a vernier caliper and did a dimensional stackup to arrive at 1/8" / 3mm. I do have a full steering knuckle off the car that I could quickly mock this back up and snap some pics.

I posted about this here:

http://board.tercelonline.com/viewthread.php?tid=33677&page=3#p...

[Edited on 23-11-2010 by Throttler]




92 Paseo WIP

Quote:
posted on another forum
...but point being, its a tercel. not meant to be fast, or to be an integra.


:haha:
View user's profile View All Posts By User
Malibuguy
TO Crew
******


Avatar


Posts: 3241
Registered: 16-8-2006
Location: Westminster, MD
Member Is Offline

Mood: Im back...watch the fuck out

[*] posted on 23-11-2010 at 11:38 AM


this is awesome info

of course i just bought my $173 CarboTech race pads not too long ago & already used them on my 1gP brake swap

I will definetly do this after i wear these pads out...i want to brake super deep into turn one

plus i need more rear brakes...




-Gregory...the exhaust freak & part of the TO.COM (_o_) crew ;)

-97 Whitehawk almost 300k DIS 14lbs 134/174 14.3@95 2.0 60ft. Track day beast. RIP...one day Ill be back

-97 coral rose pearl coupe. Stock with the side of stock
View user's profile Visit user's homepage View All Posts By User
SlammedSix
Senior TO Member
****


Avatar


Posts: 564
Registered: 10-9-2008
Location: Ventura, CA
Member Is Offline


[*] posted on 23-11-2010 at 06:30 PM


Quote:
Originally posted by Throttler
IIRC, without the spacer the Corolla rotor hits the inner surface of the rotor on the caliper bracket. With the 3mm spacer it provides that amount of clearance b/w the aforementioned surfaces, and on the parts that I had at the time, centered ther rotor b/w the caliper bracket almost perfectly. I used a vernier caliper and did a dimensional stackup to arrive at 1/8" / 3mm. I do have a full steering knuckle off the car that I could quickly mock this back up and snap some pics.

I posted about this here:

http://board.tercelonline.com/viewthread.php?tid=33677&page=3#p...


I had read through that post and never remember seeing those pics in the middle of the thread.

So you said the absolute min clearance needed to make the Corolla rotor work was .095" (2.4mm) spacer. So I guess the MX-3 rotor is 3mm more offset because its close but there is clearance there already but I would persoanlly like 1-2mm more space.

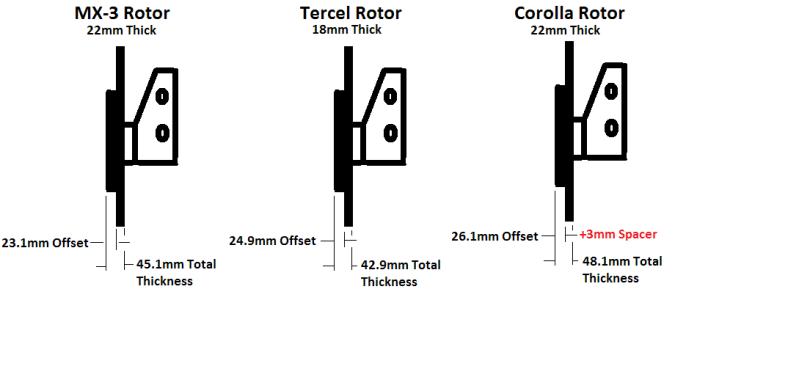

Here is a graphic I made back when I was doing the number crunches to find a rotor to work.




So from the graphic to get the same backspacing as the OEM paseo setup you would want a 22mm rotor to have a 20.9mm offset.:dunno: That is 2mm more than my MX-3 rotor I'm using.:thumbup:

[Edited on 23-11-2010 by SlammedSix]
