What lowering springs are you now using? :dunno:






Ken




For now...2004 Acura RSX type S...
View user's profile View All Posts By User
GraphiteTercel
όber TO Member
*****


Avatar


Posts: 1342
Registered: 9-3-2005
Location: Houston, TX
Member Is Offline

Mood: Vrrrrrmmmm Pssss!

[*] posted on 27-9-2009 at 10:28 PM


Quote:
Originally posted by 4EFTE-Tercel
What lowering springs are you now using? :dunno:






Ken


TEIN

Lowered like 1.5 inches... rides really good...:thumbup:





2012 Lexus IS 250 F-Sport
95 Tercel Turbo 4e-fte td04L
91 Celica

15.9 @ 82.9mph
View user's profile Visit user's homepage View All Posts By User
poordude2151
TO Patron
*******




Posts: 5210
Registered: 9-3-2006
Location: Texas
Member Is Offline

Mood: Sometimes Pain blinds us of our happiness. Stay strong, and happiness will follow!!

[*] posted on 27-9-2009 at 10:47 PM


Quote:
Originally posted by kennymp3
Here is the the TPS on ebay for around $60 bucks...
http://cgi.ebay.com/Toyota-Starlet-Turbo-EP82-Throttle-Position-Sen...

and here is the ignitor......(kinda spendy)
http://cgi.ebay.com/ebaymotors/Toyota-EP91-Turbo-Starlet-Igniter-4F...

Hope this helps:dunno:


I would just get the TPS from Toyota brand new and you know it will work. Cost the same!

You can get an igniter from another car, look at my 4e parts list.

The igniter is a $200 part from the auto parts store so J/Y would be best.
View user's profile View All Posts By User
kennymp3
Owner of T.O.
*********


Avatar


Posts: 1670
Registered: 30-6-2007
Location: PNW
Member Is Offline

Mood: uʍop ǝpısdn

[*] posted on 27-9-2009 at 11:24 PM


Here is billys 4e parts list......:2thumbsup:
http://board.tercelonline.com/viewthread.php?tid=38743


[Edited on 9-28-2009 by kennymp3]








View user's profile Visit user's homepage View All Posts By User
95greeneturtle
Senior TO Member
****


Avatar


Posts: 520
Registered: 11-5-2006
Location: ne pa
Member Is Offline

Mood: Boostin NEPA

[*] posted on 27-9-2009 at 11:37 PM


about time this thing got a 4e!! lol i can prolly hook you up with some pedals and misc. electronics if your interested shoot me a u2u



View user's profile View All Posts By User
5efhe-Tercel
Senior TO Member
****


Avatar


Posts: 697
Registered: 11-12-2004
Location: Good old U-S of A
Member Is Offline

Mood: N HIM...

[*] posted on 28-9-2009 at 12:51 AM


I have Tein also but my cars rear sits much higher! :dunno:






Ken




For now...2004 Acura RSX type S...
View user's profile View All Posts By User
poordude2151
TO Patron
*******




Posts: 5210
Registered: 9-3-2006
Location: Texas
Member Is Offline

Mood: Sometimes Pain blinds us of our happiness. Stay strong, and happiness will follow!!

[*] posted on 28-9-2009 at 08:33 AM


Quote:
Originally posted by kennymp3
Here is billys 4e parts list......:2thumbsup:
http://board.tercelonline.com/viewthread.php?tid=38743


[Edited on 9-28-2009 by kennymp3]


Thanks man, you the man!
View user's profile View All Posts By User
GraphiteTercel
όber TO Member
*****


Avatar


Posts: 1342
Registered: 9-3-2005
Location: Houston, TX
Member Is Offline

Mood: Vrrrrrmmmm Pssss!

[*] posted on 30-9-2009 at 09:24 PM

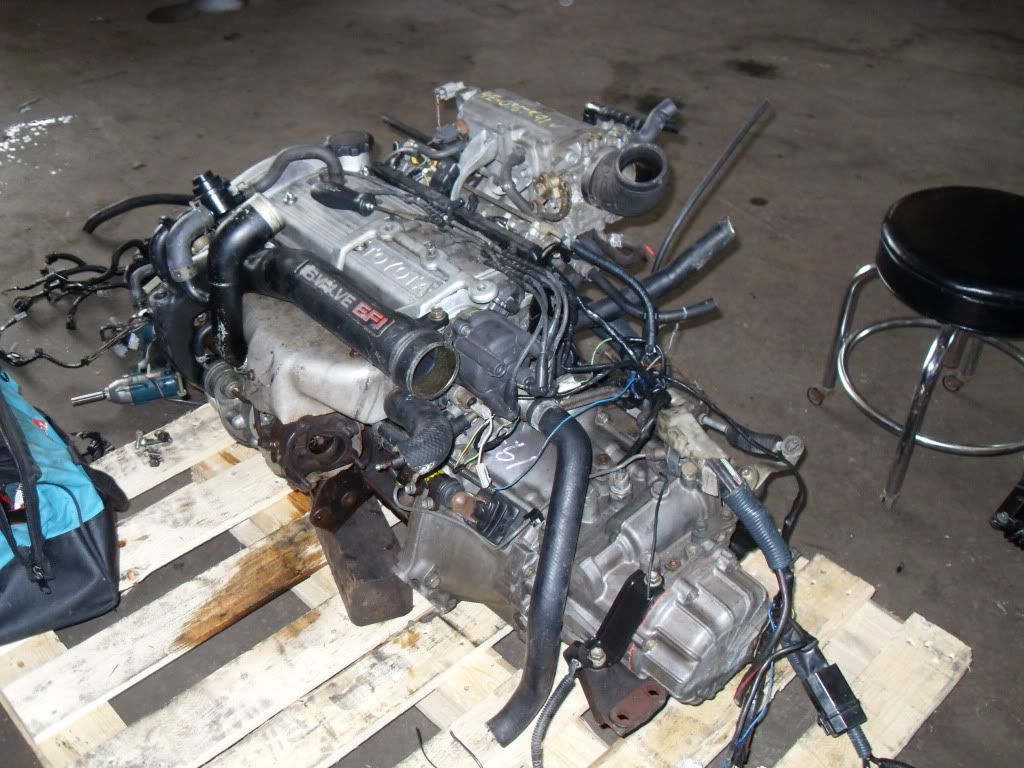

so i got the engine but there are some problems...



How come only 1 plug fits?? this is suppocely a byp harness....



what are these plugs for??

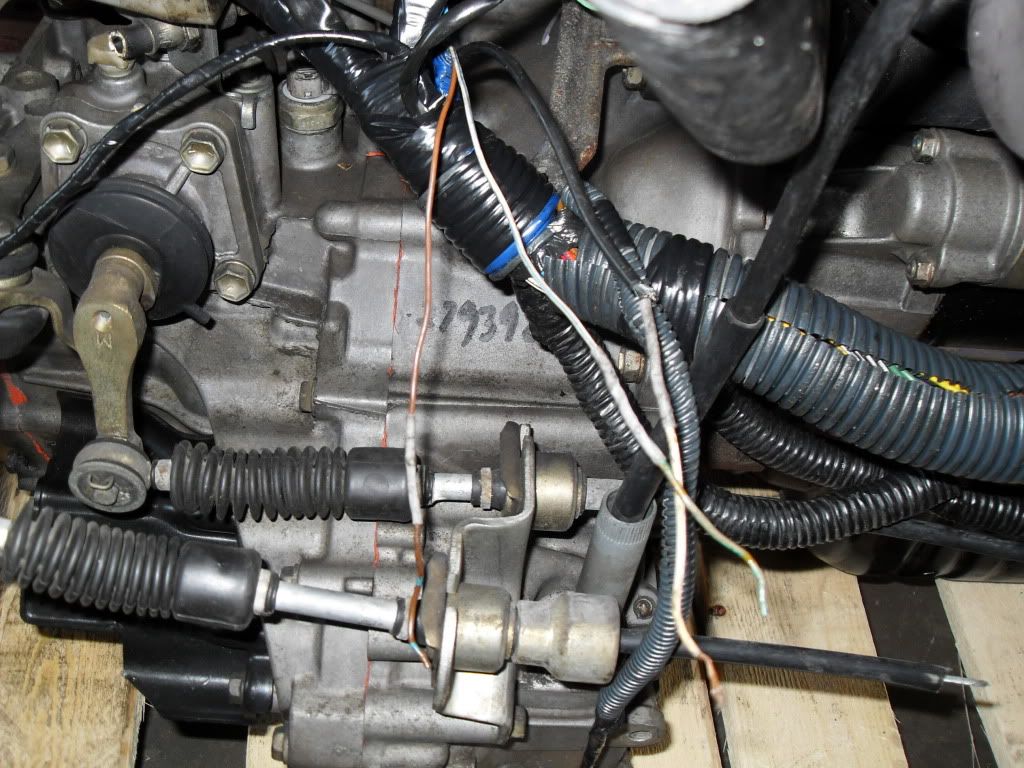

this thing is broken... whats it for?



anyone know what these wires are for?



anyone know what this blue wire is for?? it runs to a green wire on the harness close to the ecu plug and it comes all the way to the positive cable



cannot find the connector to this temp sensor








2012 Lexus IS 250 F-Sport
95 Tercel Turbo 4e-fte td04L
91 Celica

15.9 @ 82.9mph
View user's profile Visit user's homepage View All Posts By User
poordude2151
TO Patron
*******




Posts: 5210
Registered: 9-3-2006
Location: Texas
Member Is Offline

Mood: Sometimes Pain blinds us of our happiness. Stay strong, and happiness will follow!!

[*] posted on 30-9-2009 at 11:29 PM


I am going off my experience with a 3ee/4e harness so bare with me

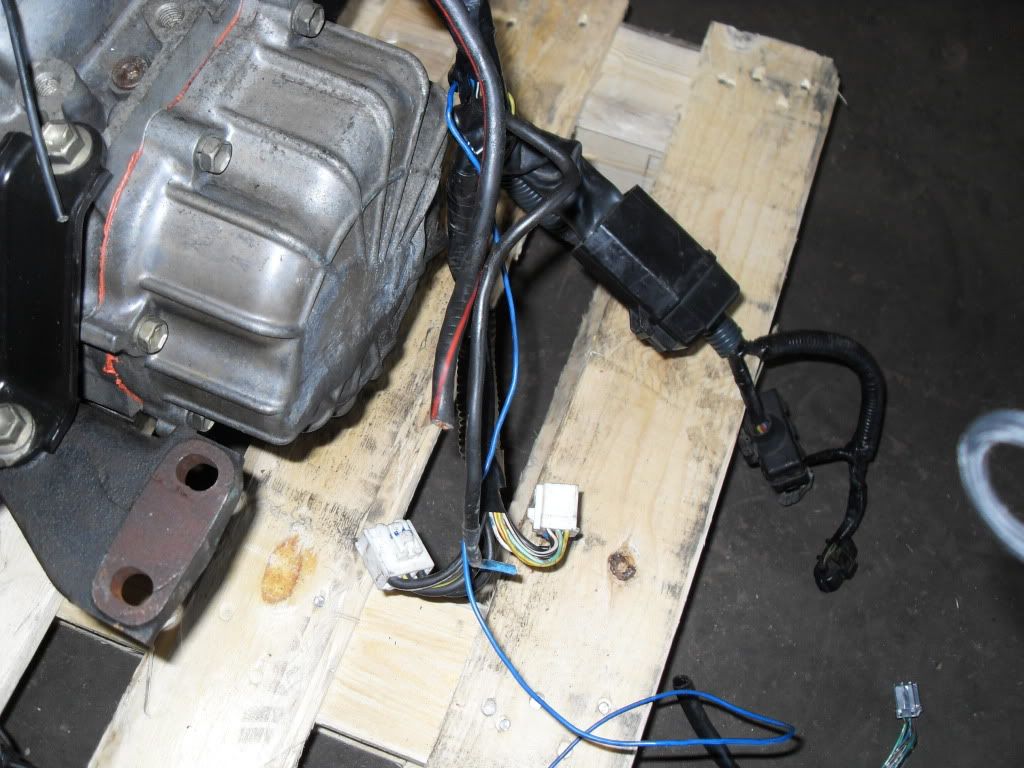

2nd pic- you are missing a plug there should be another grey one.. The blue and white plug goes to the dash or body harness...

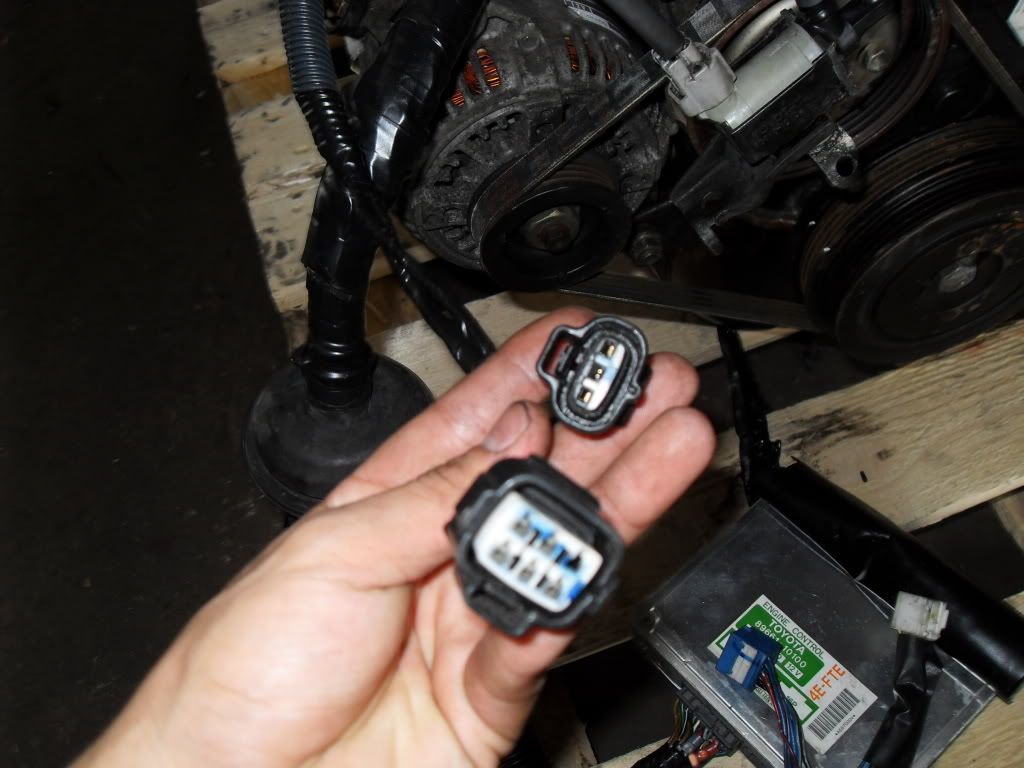

3rd pic- the big plug looks to be the wiper motor plug and the other looks to be the coil plug- (not 100% sure on that.)

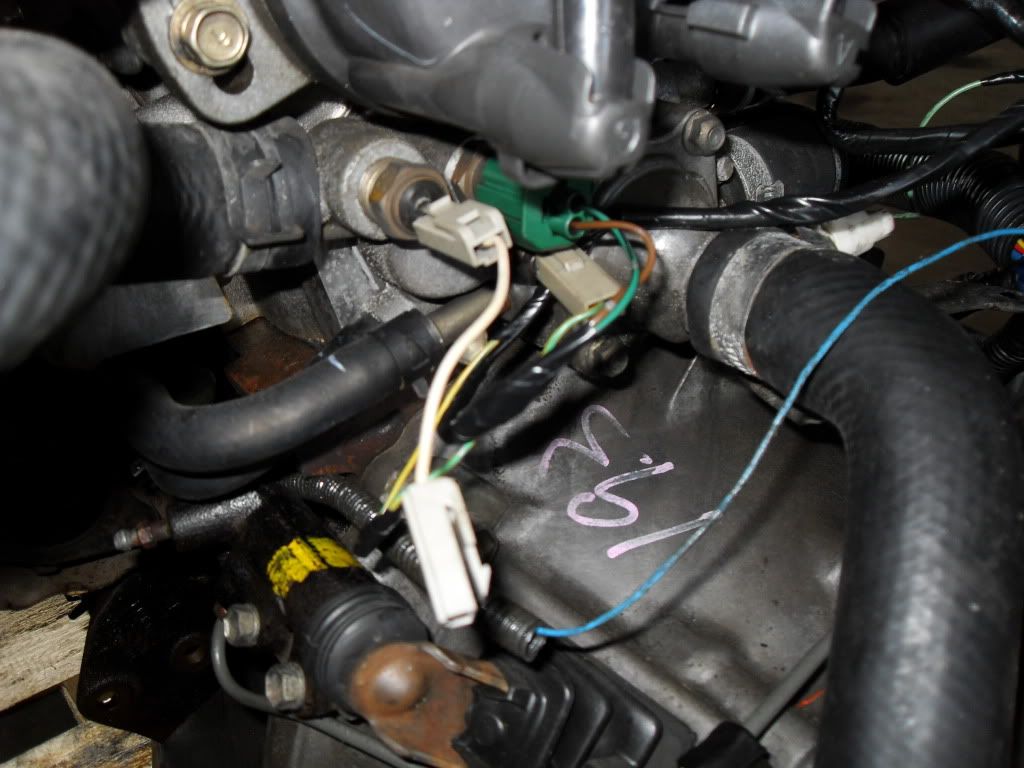

4th pic- not sure what its for but I believe you can use yours off the 5efe..

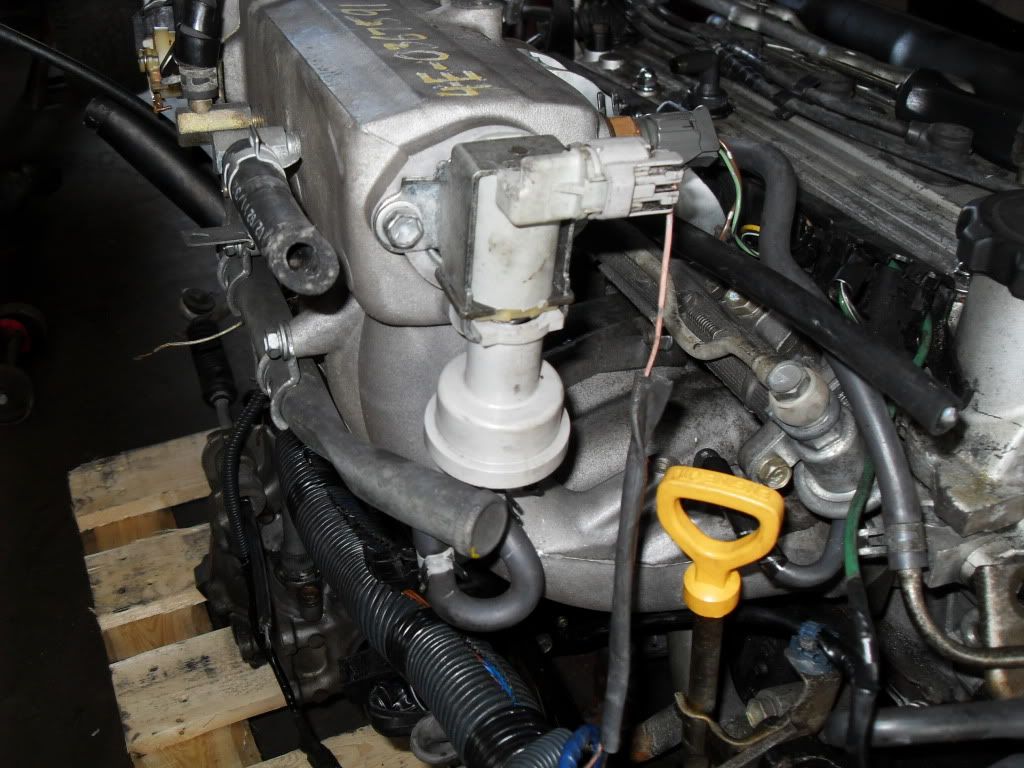

6th pic- looks like some one rigged something... I would trace that green wire that the blue wire is on back to the ECU and let me know what pin and I can tell you what the green wire is for.

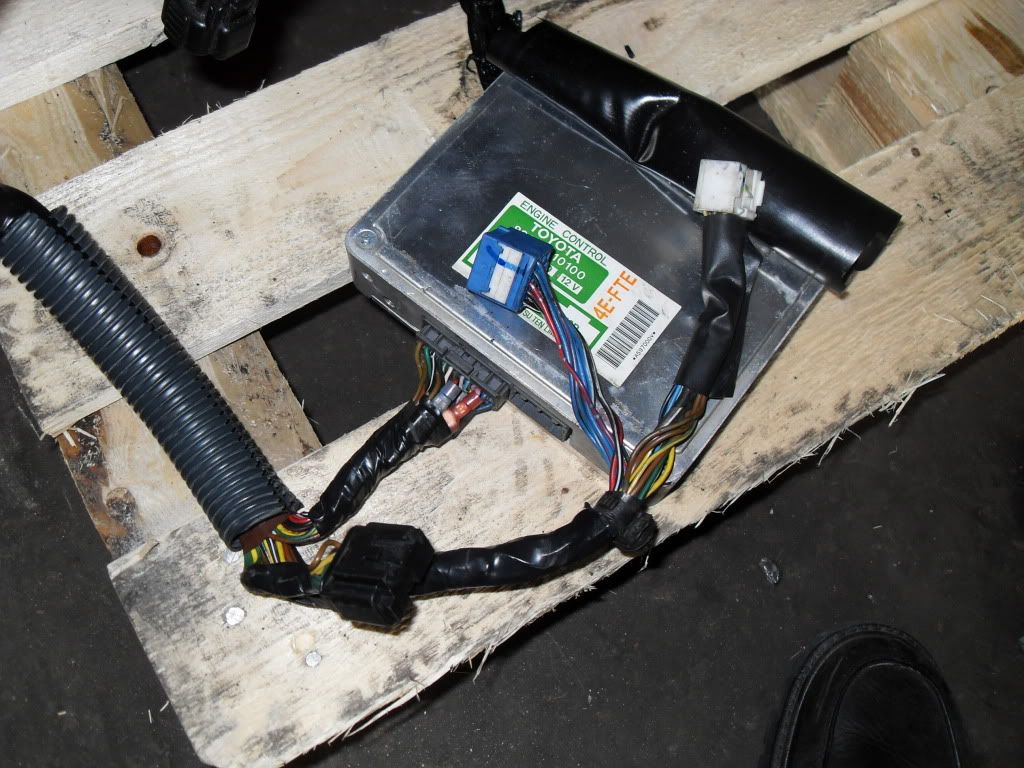

7th pic- I don't have this hooked up and BYP never installed a plug so I assume not needed.
View user's profile View All Posts By User
poordude2151
TO Patron
*******




Posts: 5210
Registered: 9-3-2006
Location: Texas
Member Is Offline

Mood: Sometimes Pain blinds us of our happiness. Stay strong, and happiness will follow!!

[*] posted on 30-9-2009 at 11:34 PM


You also stated in another htread you need a stock BOV? Well that one looks fine it just is off the filter tube that goes to the turbo. It was on the filter tube because it was getting vented into the filter then out to the world haha. I had mine like that till I upgraded..
View user's profile View All Posts By User
GraphiteTercel
όber TO Member
*****


Avatar


Posts: 1342
Registered: 9-3-2005
Location: Houston, TX
Member Is Offline

Mood: Vrrrrrmmmm Pssss!

[*] posted on 30-9-2009 at 11:35 PM


Quote:
Originally posted by poordude2151
2nd pic- you are missing a plug there should be another grey one.. The blue and white plug goes to the dash or body harness...


theres a plug there but it has like a jumper block... and if you take the jumper block off, it doesnt fit the ecu... it looks to be a 5e plug





2012 Lexus IS 250 F-Sport
95 Tercel Turbo 4e-fte td04L
91 Celica

15.9 @ 82.9mph
View user's profile Visit user's homepage View All Posts By User
poordude2151
TO Patron
*******




Posts: 5210
Registered: 9-3-2006
Location: Texas
Member Is Offline

Mood: Sometimes Pain blinds us of our happiness. Stay strong, and happiness will follow!!

[*] posted on 30-9-2009 at 11:43 PM


I see the black one... That shouldn't be it at all since that is way to short... It should be the same length as the 26pin plug.. The plug you need is a 16 pin plug...

Here are the pins in each

4E-FTE EP82 ECU 89661-10040 GREEN STICKER ma-5450

26 pin plug

1 ~ ~
2 NSW Neutral Starter Switch
3 THW Water Temparature Signal
4 PIM Pressure Intake Manifold
5 THA Intake Air Temparature
6 IGT Ignition Timing
7 IGF Ignition Feedback from the Ignitor-Coil
8 G1 Distributor
9 G- Distributor Crank Angle
10 OX Oxygen Sensor (Lambda Sensor)
11 STA Engine Cranking Signal (Starter Switch)
12 #10 Injector Pulse 1 & 3
13 E01 Computer Ground
14 DISC Aux. Control Valve or Idle-Up System Vacuum Switching Valve
15 VSV1 Air Control Vacuum Switching Valve
16 E2 Sensor Ground
17 PSW Throttle Position Sensor
18 VC
19 IDL Throttle Position Sensor (Signals ECU throttle position is at idle)
20 G2 Distributor
21 NE Part of the IIA (Intergrated Ignition Assembly) (RPM)
22 E21 Sensor Ground
23 KNK Knock Sensor
24 E1 Computer Ground
25 #20 Injector Pulse 2 & 4
26 E02 Computer Ground

16 pin plug

1 +B1 Switched Battery Power (12V)
2 BATT Switched Battery Power (+12V) (EFI Main Relay)
3 CCO Check Connector Outputs
4 FC Circuit Opening Relay (Fuel Cut)
5 ELS Electrical Load Signal System Taillight Relay
6 AC2 12V To Aircon Computer
7 BC Boost Control
8 T
9 +B Switched Battery Power (12V)
10 W Warning Light
11 EGW Catalytic Converter Temparature Warning Light (Combination Meter)
12 ~ ~
13 SPD Speed Signal
14 ACT A/C Cut Control System
15 AC1 A/C Switch Signal System (12V to Aircon Computer)
16 VF Check Connector Outputs
View user's profile View All Posts By User
GraphiteTercel
όber TO Member
*****


Avatar


Posts: 1342
Registered: 9-3-2005
Location: Houston, TX
Member Is Offline

Mood: Vrrrrrmmmm Pssss!

[*] posted on 30-9-2009 at 11:45 PM


Just though of something... that plug can be inside the car.. on the cars harness...




2012 Lexus IS 250 F-Sport
95 Tercel Turbo 4e-fte td04L
91 Celica

15.9 @ 82.9mph
View user's profile Visit user's homepage View All Posts By User
poordude2151
TO Patron
*******




Posts: 5210
Registered: 9-3-2006
Location: Texas
Member Is Offline

Mood: Sometimes Pain blinds us of our happiness. Stay strong, and happiness will follow!!

[*] posted on 30-9-2009 at 11:46 PM


now if you have this ecu then this is the pinouts in each

4E-FTE EP82 ECU 89661-10100 GREEN STICKER ma-5970

26 pin plug

1 IPV Vacuum Switching Valve
2 NSW Neutral Starter Switch
3 THW Water Temparature Signal
4 PIM Pressure Intake Manifold
5 THA Intake Air Temparature
6 IGT Ignition Timing
7 IGF Ignition Feedback from the Ignitor-Coil
8 G1 Distributor
9 G- Distributor Crank Angle
10 OX Oxygen Sensor (Lambda Sensor)
11 STA Engine Cranking Signal (Starter Switch)
12 #10 Injector Pulse 1 & 3
13 E01 Computer Ground
14 DISC Aux. Control Valve or Idle-Up System Vacuum Switching Valve
15 VSV1 Air Control Vacuum Switching Valve
16 E2 Sensor Ground
17 PSW Throttle Position Sensor
18 VC
19 IDL Throttle Position Sensor (Signals ECU throttle position is at idle)
20 G2 Distributor
21 NE Part of the IIA (Intergrated Ignition Assembly) (RPM)
22 E21 Sensor Ground
23 KNK Knock Sensor
24 E1 Computer Ground
25 #20 Injector Pulse 2 & 4
26 E02 Computer Ground

16 pin plug

1 +B1 Switched Battery Power (12V)
2 BATT Switched Battery Power (+12V) (EFI Main Relay)
3 CCO Check Connector Outputs
4 FC Circuit Opening Relay (Fuel Cut)
5 ELS Electrical Load Signal System Taillight Relay
6 AC2 12V To Aircon Computer
7 TE2 Check Connector
8 TE1 Check Connector
9 +B Switched Battery Power (12V)
10 W Warning Light
11 EGW Catalytic Converter Temparature Warning Light (Combination Meter)
12 AC1 A/C Switch Signal System (12V to Aircon Computer)
13 SPD Speed Signal
14 ACT A/C Cut Control System
15 BC Boost Control
16 VF Check Connector Outputs
View user's profile View All Posts By User
poordude2151
TO Patron
*******




Posts: 5210
Registered: 9-3-2006
Location: Texas
Member Is Offline

Mood: Sometimes Pain blinds us of our happiness. Stay strong, and happiness will follow!!

[*] posted on 30-9-2009 at 11:48 PM


Quote:
Originally posted by aroldoarevalo
Just though of something... that plug can be inside the car.. on the cars harness...


I believe it should be on the harness since the last time I looked (6 months ago) there were 2 ecu plugs on the engine harness... I could be wrong though.
View user's profile View All Posts By User
